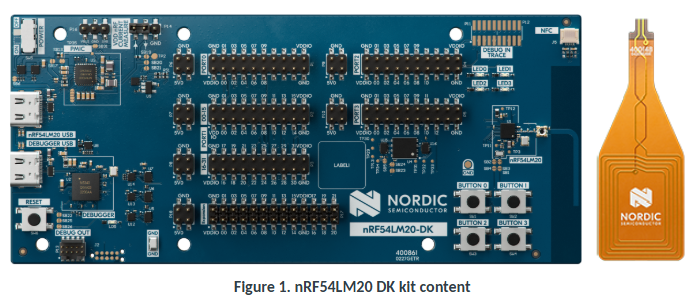

nRF54LM20 DK (PCA10184)







nRF54LM20 DK (PCA10184)



- 장착 칩 :  nRF54LM20B







• nRF54LM20B SoC in CSP98 package
• Support for the following wireless protocols:
  • Bluetooth® Low Energy
  • 802.15.4
  • Thread®
  • Zigbee®
  • 2.4 GHz proprietary
  • NFC
• 2.4 GHz and NFC antennas
• Microwave coaxial connector with switch (SWF) RF connector for direct RF measurements
• Four user-programmable LEDs
• Four user-programmable buttons
• SEGGER J-Link OB programmer/debugger
• Two Universal Asynchronous Receiver/Transmitter (UART) interfaces through virtual serial ports
• USB connection for powering and interfacing with the nRF54LM20B SoC
• USB connection to debugger for debugging, programming, and power
• Pins for measuring power consumption of the nRF54LM20B SoC
• nPM1300 Power Management Integrated Circuit (PMIC) providing a 1.8 V to 3.3 V user-programmable power supply from USB





상세정보

Technical Documentation
