SILabs, USB Debug Adapter

by i.got.it 2015. 4. 18.

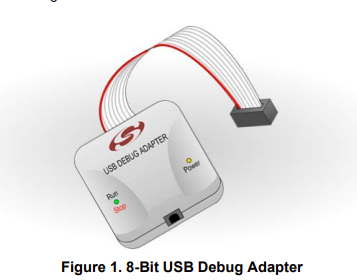

USB Debug Adapter for C8051Fxxx MCUs

DEBUGADPTR1-USB

The USB Debug Adapter provides the interface between the PC’s USB port and the C8051Fxxx’s in-system debug/programming circuitry.
The attached 10-pin debug ribbon cable connects the adapter to the target board and the target device’s debug interface signals (the USB Debug Adapter supports both Silicon Labs JTAG and C2 debug interfaces.) Power is provided to the adapter from the USB connection to the PC; the USB cable is included as part of the USB Debug Adapter. The USB Debug Adapter is capable of providing power to some of the Silicon Labs’ circuit boards via pin 10 of the debug connector, see Development Kit User's Guide for details.











제조사 제공정보 : https://www.silabs.com/products/mcu/Pages/USBDebug.aspx



사용자 가이드 : https://www.silabs.com/Support%20Documents/TechnicalDocs/8-bit-USB-Debug-Adapter.pdf









주요정보.

1. 타겟과의 로직레벨은 디버거에서 자동으로 설정된다. 이때 활용되는것이 pin7 에서 검출된 타겟보드(칩)의 전압레벨을 모니터하여 디버거 내부에서 자동로직레벨 조정 이뤄짐.

2. 핀7은 "양호한 노이즈 immunity" 를 위해서는 strong pull up (~1k옴) 이 요구된다.

3. 타겟칩이 32KHz 이상의 시스템 클럭이어야 정상통신가능하다.

4. 핀 10에서 출력되는 5V전원의 공급전류 최대값 100mA 임.\
