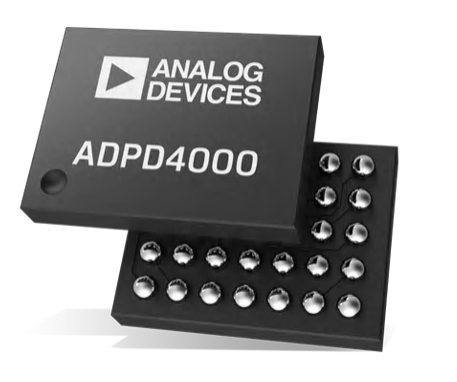

ADPD4000/1. 멀티모달센서칩. PPG(맥파). ECG(심전도) 등



ADPD4000/1

Features

• 8 input channels with multiple operation modes to accommodate the following measurements: PPG, ECG, EDA, impedance, and temperature
• Dual channel processing with simultaneous sampling
• 12 programmable time slots for synchronized sensor measurements
• Flexible input multiplexing to support differential and single-ended sensor measurements
• 8 LED drivers, 4 of which can be driven simultaneously
• On-chip digital filtering

• Flexible sampling rate from 0.004Hz to 9kHz using internal oscillators
• SNR of transmit and receive signal chain: 90dB
• Ambient light rejection: 60dB up to 1kHz
• 400mA total LED drive current
• Total system power dissipation: 50µW (combined LED and AFE power), continuous PPG measurement at 75dB SNR, 25Hz ODR, 100nA/mA CTR
• SPI and I2C communications supported
• 256-byte FIFO



데이터시트 : https://www.mouser.com/pdfDocs/ADPD4000-4001.pdf

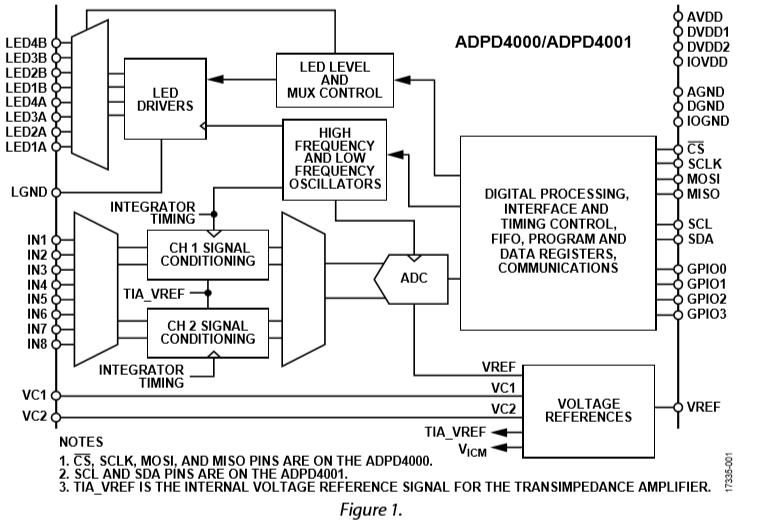

Function Block









---
