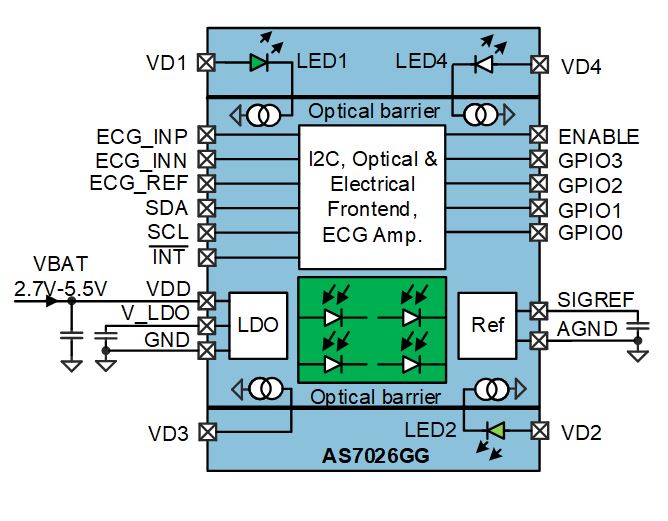

- 심전도 맥파 동시측정 광학계 일체형.
- Synchronized PPG and ECG acquisition
- Embedded low noise analog front end for ECG signals acquisition
- Improved optical path
- 내장 LED : 3개(green 2, IR 1). 외부 LED : 1개.
- 사이즈 : 20핀, 6.2x2.75x1mm
|Datasheet||AS7026GG Biosensor Datasheet||English|
|User Guide||AS702x Evaluation SW User Guide||English|
The AS7026GG Eval Kit is designed to evaluate all functions of the AS7026GG biosensor and test them in various applications. For full flexibility, biosensor (AS7026GG), temperature sensor (AS6200), accelerometer (LIS2DH12) and electrodes are located on the break out board, which can be used in any application and reconnected to the main board via FPC cable. There is also the option to attach different electrodes. After breaking off the Board it is also possible to connect the Add-On Board with the FPC cable or the Wristband with the PicoBlade connector. The Eval Kit works with USB connection to the PC and comes with a GUI, which enables the user to change AS7026GG register settings and see measurement results. The SDK containing algorithms for HRM, HRV and Blood Pressure. Any signals important for development can be probed easily at the pin headers.
