FT813 . Embedded Video Engine . 터치 , 디스플레이

by i.got.it 2023. 7. 21.





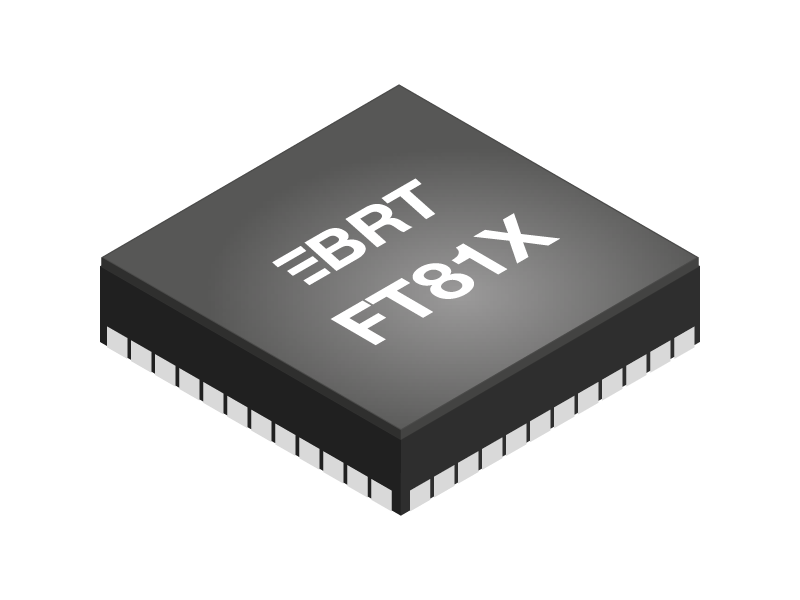

FT813

Display, Audio and Touch Graphics Controller ICs

FT813







데이터 시트 : http://www.ftdichip.com/Support/Documents/DataSheets/ICs/DS_FT81x.pdf

제조사 제품 페이지 : https://www.ftdichip.com/old2020/Products/ICs/FT81X.html



FT813 Features



  • Maximum screen resolution increased from 512 x 512 pixels to 800x600 pixels
  • Colour depth increased from 18-bit to 24-bit (FT812 and FT813)
  • Extra large ROM fonts added
  • Orientation switching support added with REG ROTATE and CMD SETROTATE
  • Object memory increased from 256kBytes to 1Mbyte
  • Master clock frequency improvement - REG PCLK can now be 1
  • Smooth back-motion JPG encoded AVI video playback
  • Multiple 16/32 bit colour palettes supported with transparency
  • L2 format supported for efficient DXT1-style bitmaps
  • CMD MEDIAFIFO specifies an area of main memory to use as a FIFO for JPG, AVI and PNG loading
  • Multiple numeric formats supported including binary, octal, decimal and hex
  • Simplified font loading with CMD SETFONT2
  • MCU interfacing via SPI, Dual SPI or Quad SPI options

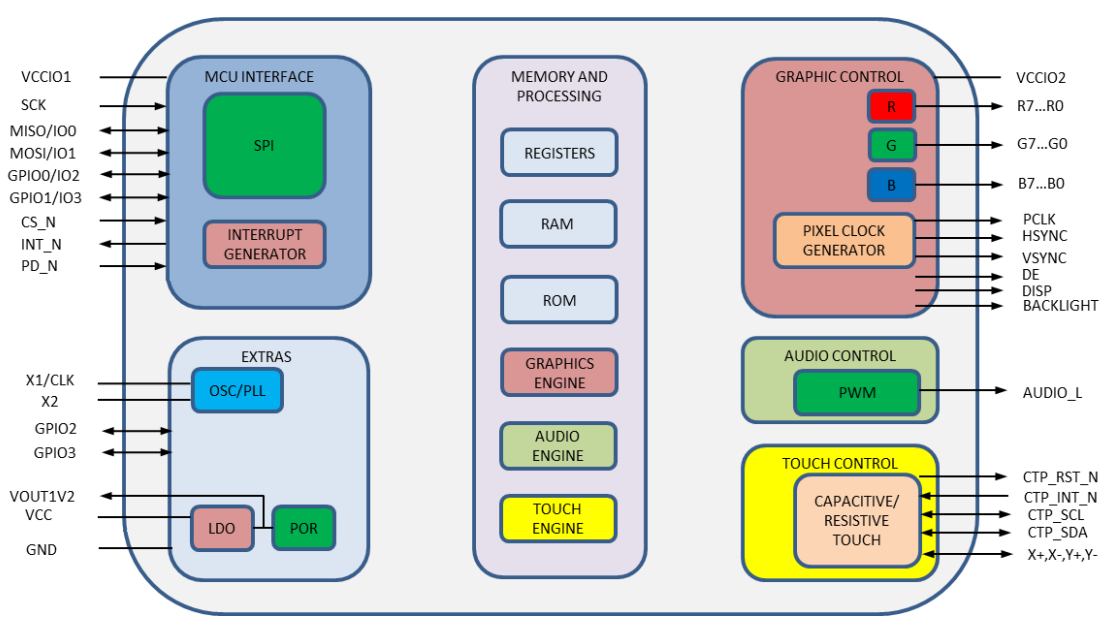

FT813 기능블럭

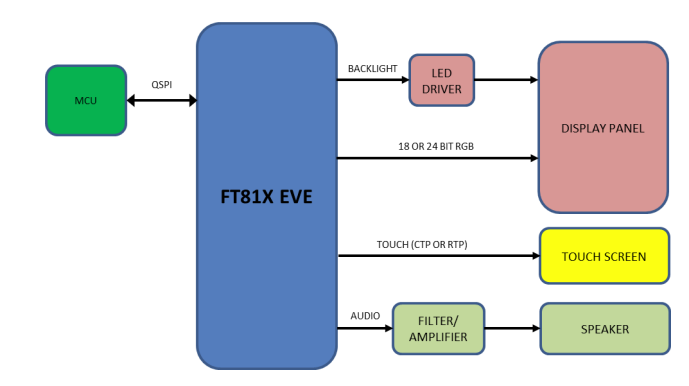

FT813 주변 구성

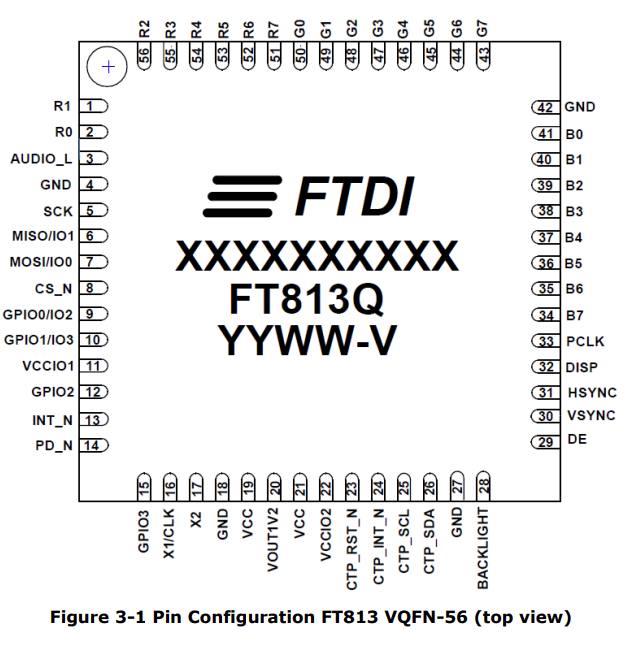

FT813 핀맵

- R, G, B 각각 8비트 . 총 24핀

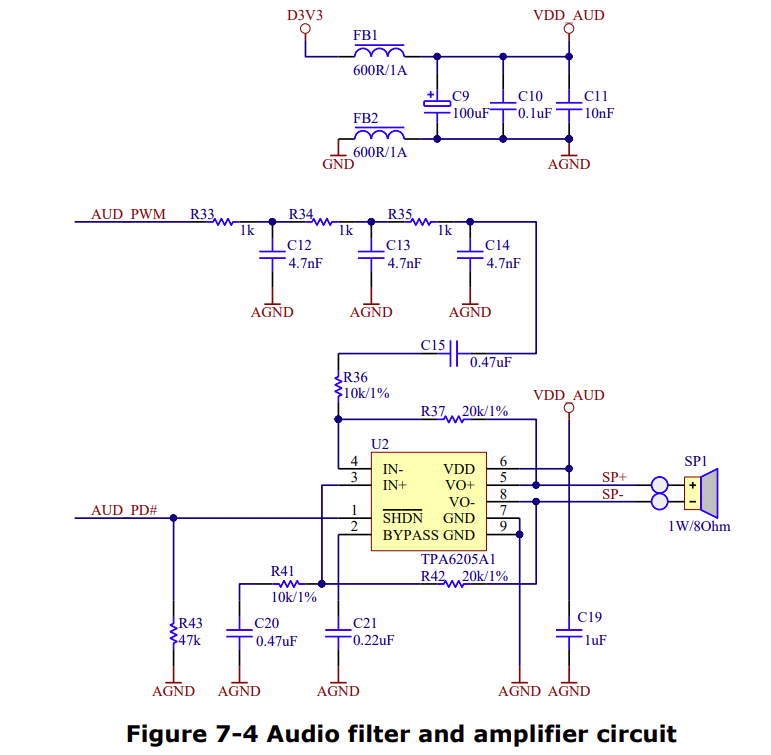

FT813 Schematic

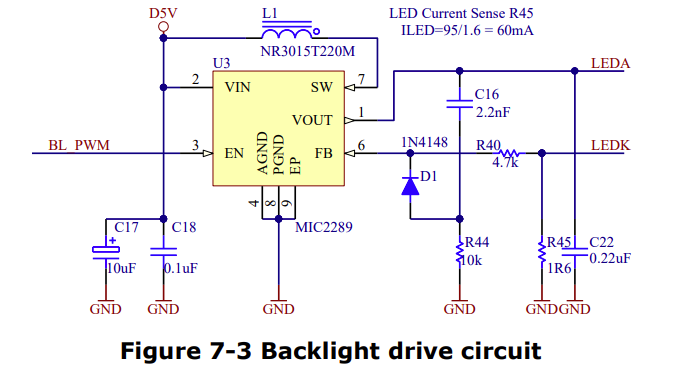

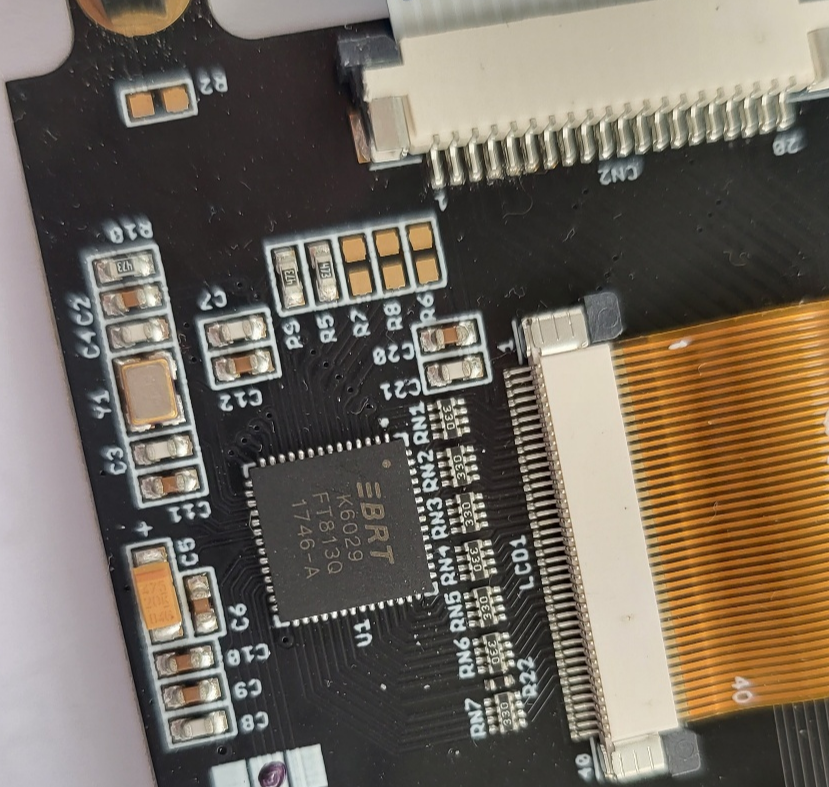

FT813 구현 예
