ILI9488 . TFT LCD Driver



ILI9488

- TFT LCD Driver

- 320 x 480

- Internal GRAM



Display Interface types:

- MIPI-DBI (Display Bus Interface)

 - - Type B (i-80 system), 8-/9-/16-/18-/24-bit bus

 - - Type C (Serial data transfer interface, 3/4-line SPI)

- MIPI-DPI (Display Pixel Interface)

 - - Supports 24 bit/pixel (R: 8-bit, G: 8-bit, B: 8-bit)

 - - Supports 18 bit/pixel (R: 6-bit, G: 6-bit, B: 6-bit)

 - - Supports 16 bit/pixel (R: 5-bit, G: 6-bit, B: 5-bit)

- MIPI-DSI (Display Serial Interface)

 - - Supports one data lane/maximum speed 500Mbps

 - - Supports DSI version 1.01

 - - Supports D-PHY version 1.00



데이터 시트 : https://focuslcds.com/content/ILI9488.pdf

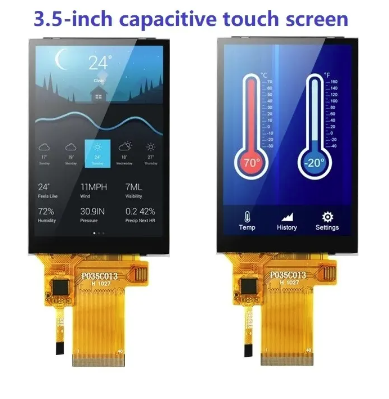

ILI9488 적용 TFT LCD 모듈예



판매처 . 가격 14,000원

https://www.aliexpress.com/item/1005005311423984.html?aff_fcid=18cd99ffd3554d878e115377220d5e63-1695367310484-07297-_DFOXBb5&tt=CPS_NORMAL&aff_fsk=_DFOXBb5&aff_platform=portals-tool&sk=_DFOXBb5&aff_trace_key=18cd99ffd3554d878e115377220d5e63-1695367310484-07297-_DFOXBb5&terminal_id=789539124cf442b5add3509ae2c60496&afSmartRedirect=y







---

첫 등록 : 2023.09.22

최종 수정 :
