임베디드.일렉트로닉스/PCB 솔더링 알티움

Online Gerber Viewer . JLCPCB production file 에 있는 거버 데이터 보기.

by i.got.it 2023. 2. 22.





Online Gerber Viewer .

- 웹에서 거버파일들 zip 압축하여  업로드 하면 PCB 형상 보여줌.

- 무료.





주소 : https://gerber-viewer.com/



Online Gerber Viewer

With our 'Online Gerber Viewer' web service you can visualize your Gerber274x files as well as files in the Excellon format and navigate in a fast and simple way through the PCB design.

gerber-viewer.com



- 참고 : 상기  링크 에서 회원가입해야 정상 사용가능한데, 내가 가입 할 때(2023.02.22)는 이메일로 가입하려면 오류 생김. microsoft 계정으로 가입 기능도 제공되길래 이 방식으로 가입 정상 처리되었음.

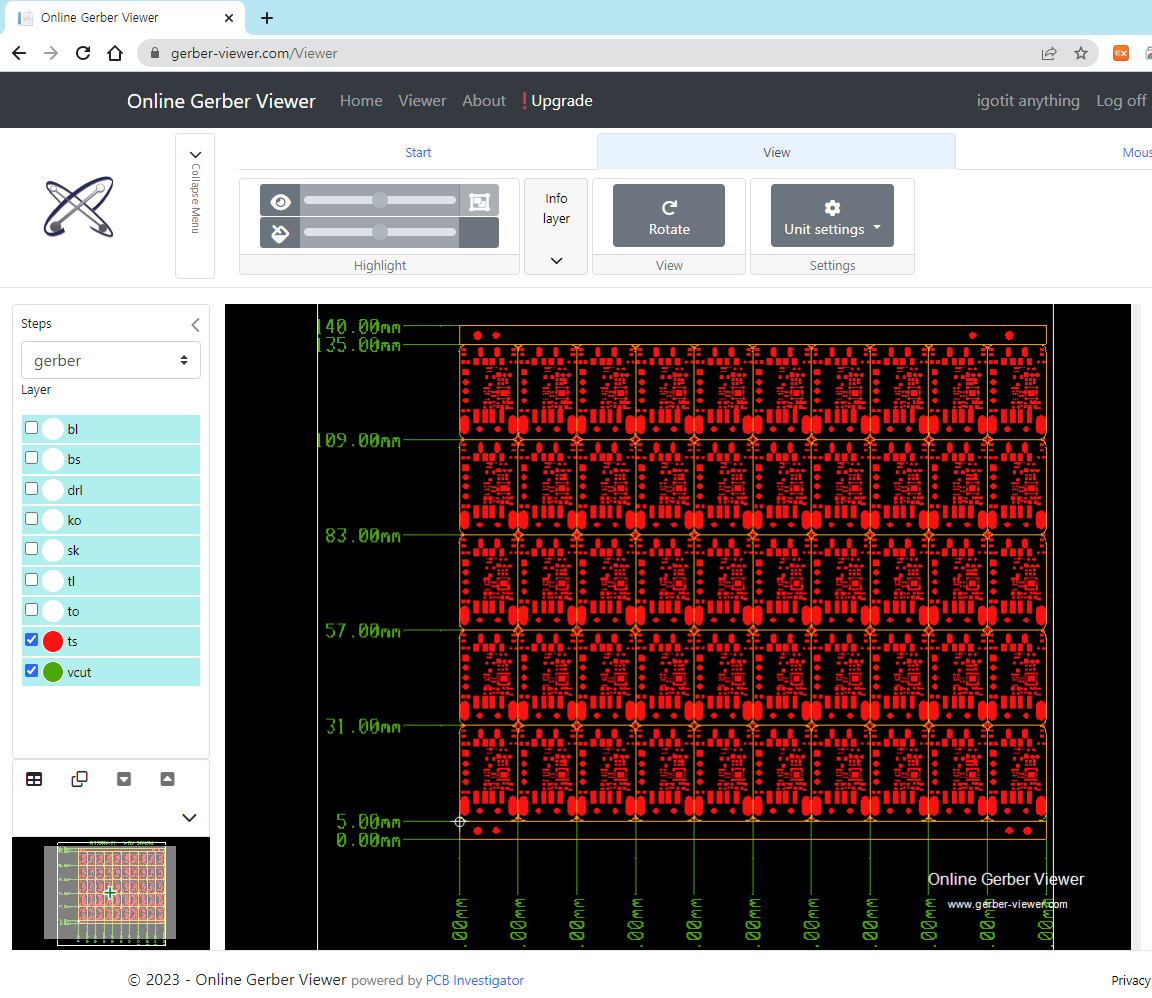

거버파일 보이는 모습 예.



JLCPCB production file 보기

위 예에서 사용된 거버파일은 JLCPCB 에 PCB 제조 의뢰하면 PCB 의 production file 다운로드 가능하며 아래 처럼 ok  라는 폴더 속에 거버파일들(파일이름만 있고 파일 확장자 없음.)이 있다. 이 파일들을  ok.zip 으로 압축하여 상기 사이트에서 업로드하면 위 화면처럼 볼 수 있다.







연관



상위정리



ALTIUM . EasyEDA . PCB 제작. 솔더링. SMT

ALTIUM 활용법 정리 - 회로설계, PCB 설계제작 위한 툴 S/W 알티움 설정관련 주제 상세보기 알티움 개요 https://igotit.tistory.com/281 알티움 설치 https://igotit.tistory.com/408 알티움 데이터베이스 연동법(고급

igotit.tistory.com








첫 등록 : 2023.02.22

최종 수정 :

단축 주소 : https://igotit.tistory.com/4248
