EasyEDA . PCB . Panelize (배열 만들기) .

by i.got.it 2023. 2. 23.







EasyEDA 로 PCB 배열 만들기

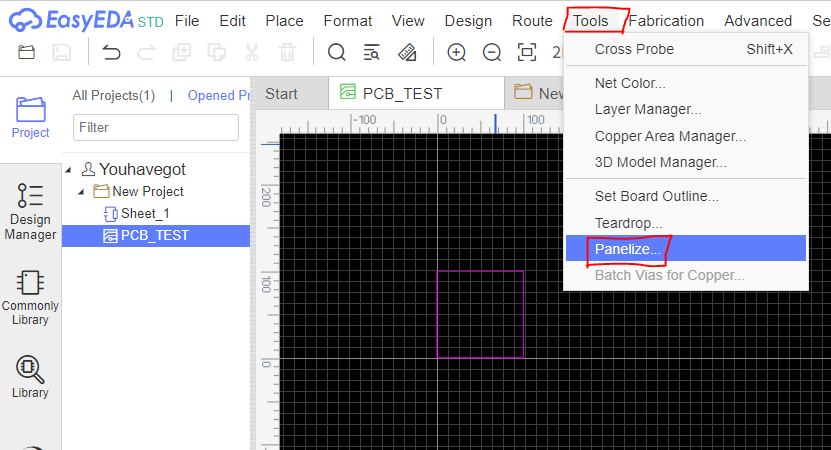

EasyEDA PCB 작업 환경에서 (아래 그림)

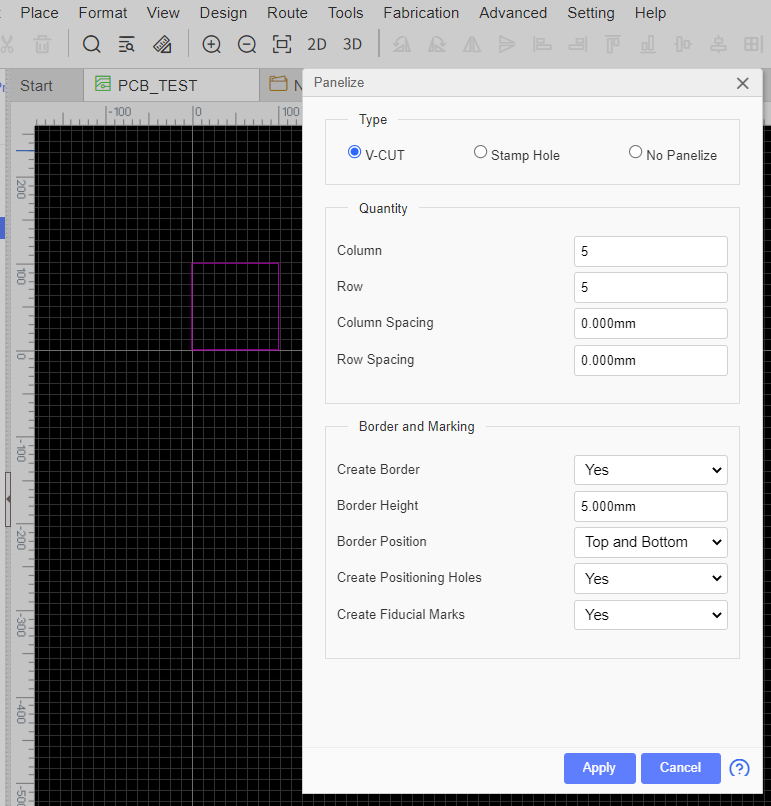

메뉴 : Tools -> Panelize... 클릭하면 아래처럼 패널 설정하는 창이 보인다. 이곳에서 Type 에는 보드사이 처리 방식 V-CUT / Stamp Hole 선택,  Column , Row 수량 기록, 보드 처리  설정한다.

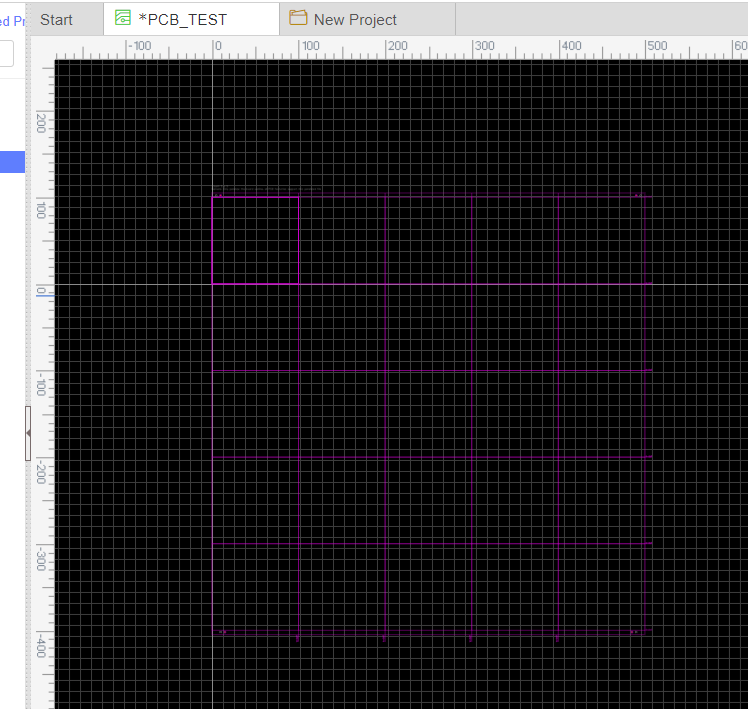

위 화면에서 버튼 Apply 클릭하면 아래처럼 PCB 배열 생성 완료.







EasyEDA 의 Panelize 설명





EasyEDA Tutorial

Panelize --> Content via: Top Menu - Tools - Panelize Panelize by Editor At present, EasyEDA only support to panelize PCB itself, in order to decrease the file size, the panelized file only panelize the board outline. Normally, all the PCB factory will sup

docs.easyeda.com
