nRF52 UART , UARTE
Features
- UART 수량 : nRF52840 에는 2개.
- Full-duplex operation
- Automatic flow control
- Parity checking and generation for the 9th data bit
- Baud Rate : 최저 1,200 bps 에서 최대 1Mbps 까지 18단계 선택가능. <- 최대 1Mbps 가 최고속도라는게 아쉬움. 비교 : STM32L4 UART 는 최대 10Mbps.
Function Block -UART

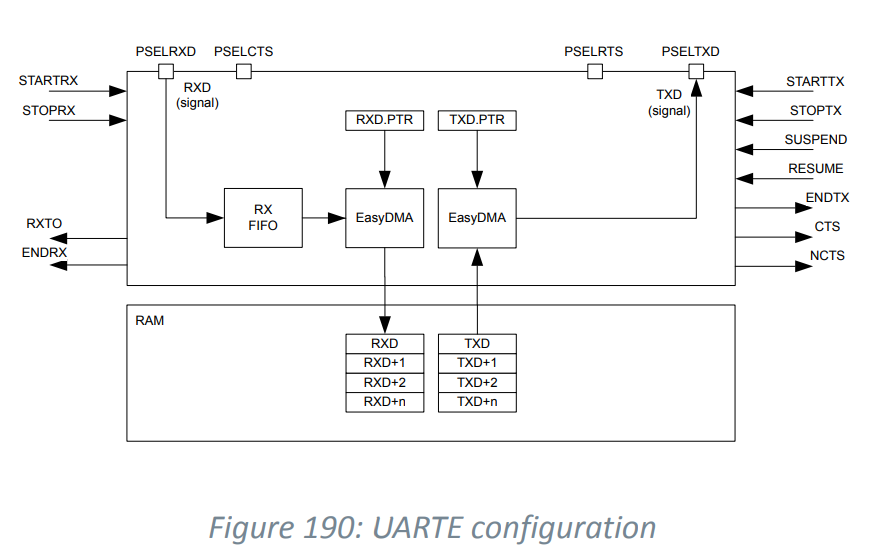

Function Block -UARTE
from : http://infocenter.nordicsemi.com/pdf/nRF52840_PS_v1.0.pdf page 454~
UART example codes.
- nRF5 SDK 제공 예제.
nRF5 SDK v17.1.0: UART Example
The UART Example demonstrates basic UART usage for communicating with a PC terminal. It transmits and receives data through the configured pins as a serial device. The configured pins must be redirected to a COM port. Terminal programs (for example PUTTY)
infocenter.nordicsemi.com
UARTE example codes.
- EasyDMA 활용 하여 UART 통신 하는 것
- nRF5 SDK 버전 7.1.0 에서 제공 예제.
nRF5 SDK v17.1.0: Libuarte Example
The Libuarte Example demonstrates basic Libuarte - advanced UARTE driver usage. Example shows that libuarte is able to loselessly receive data without flow control. You can find the source code and the project file of the example in the following folder: \
infocenter.nordicsemi.com
상위 정리글
https://igotit.tistory.com/244 의 nRF52
STM32. nRF52. ESP32. EFM8. EFM32. PSoC 활용 정리.
STM32. nRF52. ESP32. EFM8. EFM32. PSoC 총정리 제조사 칩 주요특징 실리콘랩 8bit MCU EFM8 시리즈 32bit EFM32 시리즈 EFM8 싸다. STM STM32 . 최고 항상 만족. Cypress pSoC pSoC6 ..
igotit.tistory.com
첫등록 : 2019.01.12
최종수정 : 2021.03.30
단축주소 : https://igotit.tistory.com/2039
