ALTIUM. Export Import rules. PCB rules 파일 출력 / 파일 읽기.

by i.got.it 2019. 10. 26.



알티움에서 PCB 규칙 파일출력 방법

- 알티움에서 PCB 규칙을 파일로 저장하는 방법.

단계1. 대화상자 "PCB Rules and Constraints Editor" 열기

- 알티움 PCB 메뉴 : Design -> Rules.. 클릭



단계2. 메뉴의 "Export Rules..." 클릭하여 파일 저장

- 아래 그림 의 메뉴에 "Export Rules..." 클릭하여 전체 항목 선택하여 저장.





영상. PCB 규칙파일 저장 전체.







//////////////////////////////////////////////////////////////////////////////

알티움에서 PCB 규칙파일 (.rul) 적용방법

- 파일로 되어있는 pcb 규칙 파일을 알티움에서 읽어들여 적용하는 방법



단계1. 대화상자 "PCB Rules and Constraints Editor" 열기

- 알티움 PCB 메뉴 : Design -> Rules.. 클릭



단계2.  메뉴의 "Import Rules..." 클릭하여 파일선택

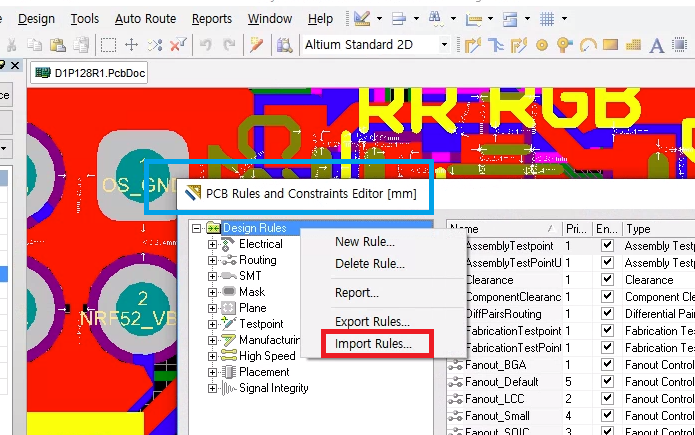

-  단계1의 창의 왼쪽의 상단 마우스 우클릭 하여 보이는 메뉴(아래그림)에서 "Import Rules..." 클릭한다.







영상. - 상기단계1,2 전체과정.















//////////////////////////////////////////////////////

Exporting and Importing Rules

Design rules can be exported from, and imported to, the PCB Rules and Constraints Editor dialog. This allows you to save and load favorite rule definitions between different designs.

  • To export - right-click anywhere within the tree on the left of the dialog and select Export Rules. Exported rules are stored in a PCB Rule file (*.rul).
  • To import - select Import Rules from the same right-click menu, then browse to and open, the required PCB Rule file.

In both cases, you can choose which types of design rules to export/import.





상기정보 : https://www.altium.com/documentation/altium-designer/constraining-the-design-design-rules-ad?version=9.0 의 끝부분 일부.
