STM32L4R/S. 클럭

by i.got.it 2019. 9. 1.



STM32L4R/S. Clock



SYSCLK(시스템 클럭)으로  4종의 클럭 소스 사용가능.



• HSI16 (high speed internal)16 MHz RC oscillator clock
• MSI (multispeed internal) RC oscillator clock
• HSE oscillator clock, from 4 to 48 MHz
• PLL clock



기타 클럭 소스.

• 32 kHz low speed internal RC (LSI RC) which drives the independent watchdog and
optionally the RTC used for Auto-wakeup from Stop and Standby modes.
• 32.768 kHz low speed external crystal (LSE crystal) which optionally drives the realtime
clock (RTCCLK).
• RC 48 MHz internal clock sources (HSI48) to potentially drive the USB FS, the
SDMMC and the RNG.





HSE Clock

- 주파수 범위 : 4~48MHz

- Clock control register 의 HSERDY 에서 oscilator 의 stable 여부 알 수 있음.



high speed external crystal 이 필수인 경우

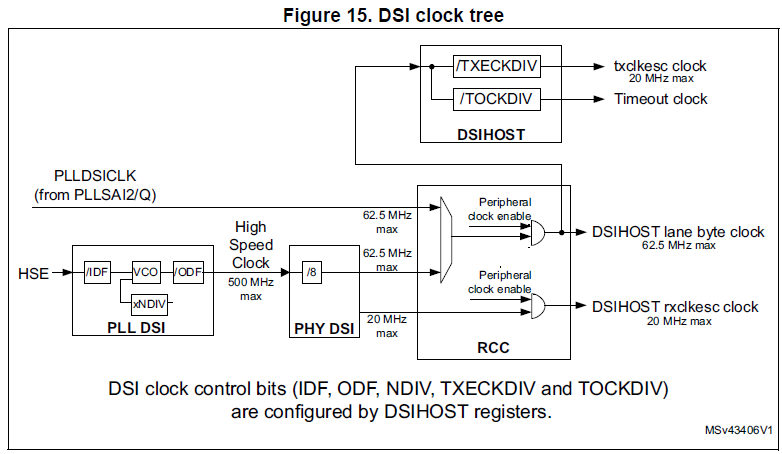

- DSI(Display Serial Interface) Clock 은 외부크리스탈필수 장착해야함.





from : RM0432. STM32L4Rxxx and STM32L4Sxxx 페이지 218~



연관



STM32CubeMX 에서 외부크리스탈 핀 할당. : https://igotit.tistory.com/2074



STM32CubeMX 에서 클럭 설정하기 : https://igotit.tistory.com/2075











 본 글 포함된 상위 정리글



 https://igotit.tistory.com/244 의 STM32






첫등록 : 2019년 9월 1일

최종수정 :



본 글 단축주소 : https://igotit.tistory.com/2291
