STM32WB5MMG. BLE 5.2 포함 멀티프로토콜 무선통신 모듈.

by 리치굿맨 2021. 3. 7.

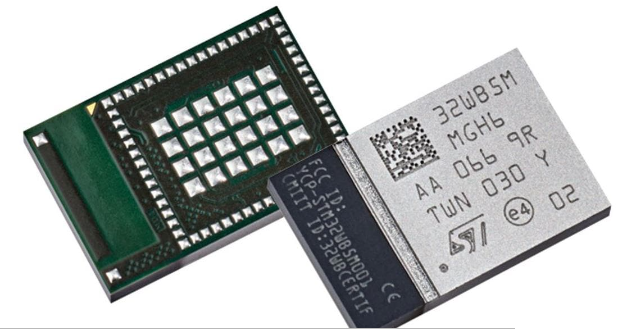

STM32WB5MMG







size: 7.3 x 11 x 1.4 mm



The STM32WB5MMG is an ultra-low-power and small form factor certified 2.4GHz wireless module. It supports Bluetooth® Low Energy 5.0, Zigbee® 3.0, OpenThread, dynamic and static concurrent modes, and 802.15.4 proprietary protocols. Based on STMicroelectronics STM32WB55VGY wireless microcontroller, the STM32WB5MMG provides best-in-class RF performance thanks to its good receiver sensitivity and a high output power signal. Its low-power features enable extended battery life time, small coin-cell batteries or energy harvesting. The STM32WB5MMG requires no RF expertise and is the best way to speed-up any development and to reduce associated costs. The module is completely protocol stack royalty-free.





Features



  • Integrated chip antenna
  • Bluetooth® Low Energy 5.0, Zigbee® 3.0, OpenThread certified
  • Dynamic and static concurrent modes
  • IEEE 802.15.4-2011 MAC PHY
  • Supports 2 Mbits/s
  • TX output power up to +6 dBm
  • RX sensitivity: -96 dBm (Bluetooth® Low Energy at 1 Mbps), -100 dBm (802.15.4)
  • Range: up to 75 meters
  • Dedicated Arm® Cortex®-M0+ for radio and security tasks
  • Dedicated Arm® Cortex®-M4 CPU with FPU and ART (adaptive real-time accelerator) up to 64 MHz speed
  • 1-Mbyte Flash memory, 256-Kbyte SRAM
  • Fully integrated BOM, including 32 MHz radio and 32 KHz RTC crystals
  • Integrated SMPS
  • Ultra-low-power modes for battery longevity
  • 68 GPIOs
  • Integrated IPD for best-in-class and reliable antenna matching
  • 1.8 V to 3.6 V VDD range
  • -40 ºC to 85 ºC temperature range
  • Built-in security features such as: secure firmware installation (SFI) for radio stack, customer key storage/key management services, PKA, AES 256-bit, TRNG, PCROP, CRC, 96-bit UID, possibility to derive 802.15.4 and Bluetooth® Low Energy 48-bit UEI
  • Certifications: CE, FCC, IC, JRF, SRRC, RoHS, REACH, GOST, KC, NCC





데이터시트 : www.st.com/resource/en/datasheet/stm32wb5mmg.pdf





제조사 제품페이지



STM32WB5MMG - STMicroelectronics

STM32WB5MMG - Ultra-low-power Module - Dual core Arm Cortex-M4 MCU 64 MHz, Cortex-M0+ 32MHz with 1 Mbyte of Flash memory, Bluetooth LE 5.2, 802.15.4, Zigbee, Thread, USB, LCD, AES-256, STM32WB5MMGH6TR, STMicroelectronics

www.st.com

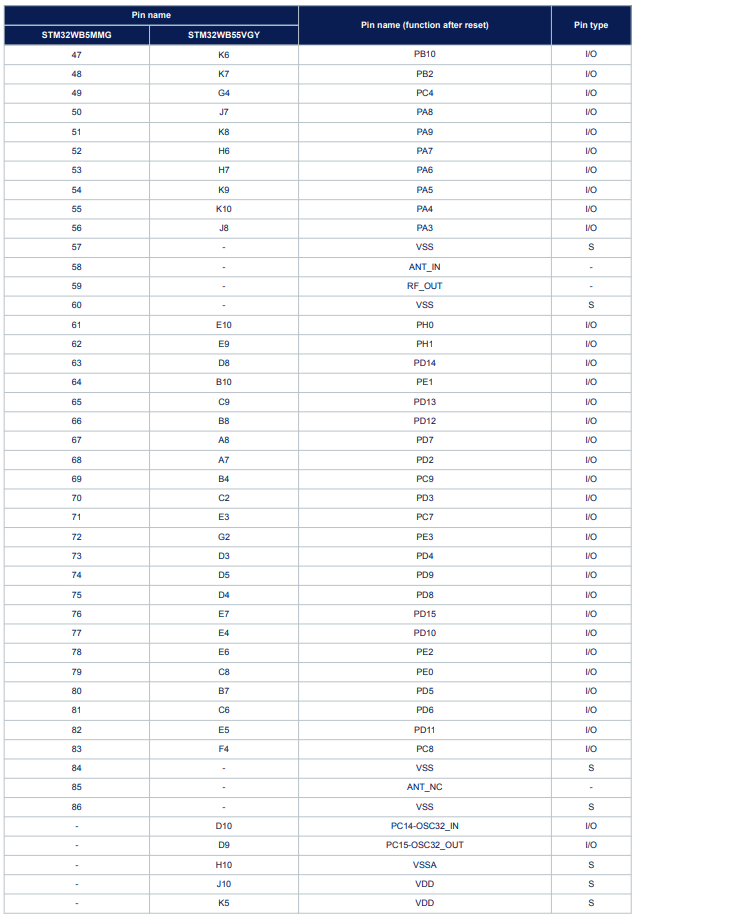

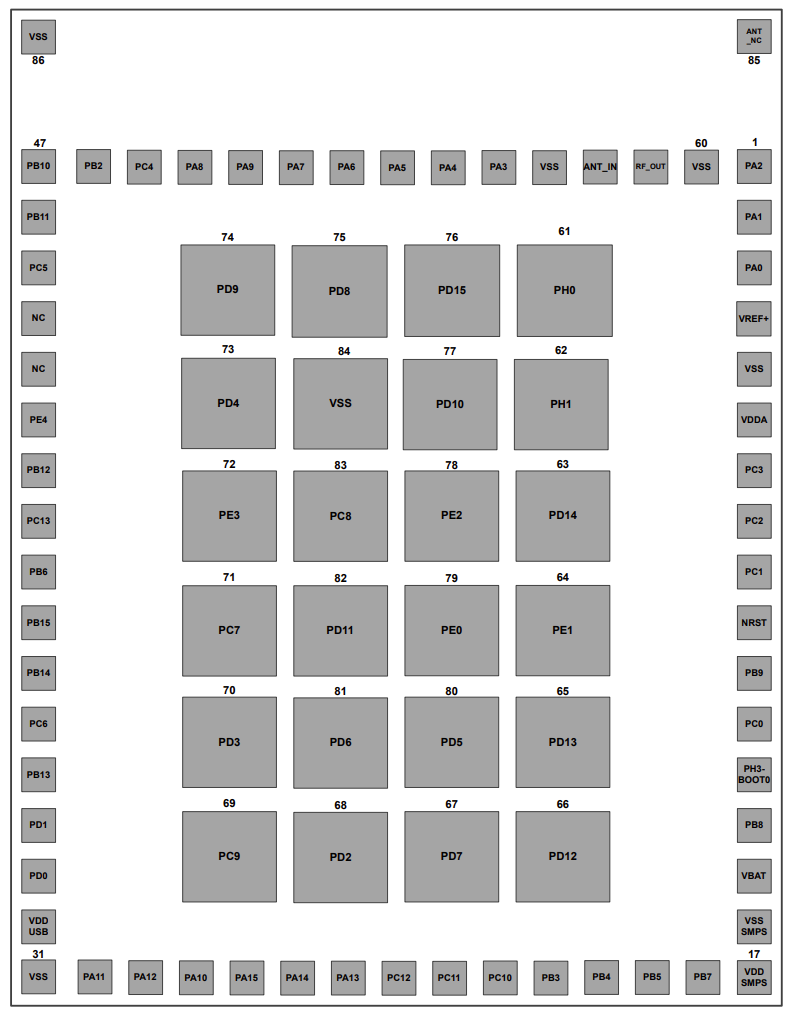

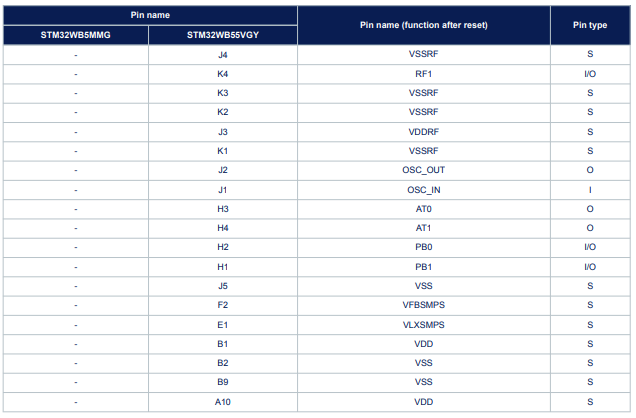

핀맵











application notes



OTA DFU

Over-the-air application and wireless firmware update for STM32WB Series microcontrollers - Application note






첫 등록 : 2021.03.07

최종 수정 :

단축 주소 : https://igotit.tistory.com/2785
