STLINK-V3MINI. STM32 디버거. 프로그래머.

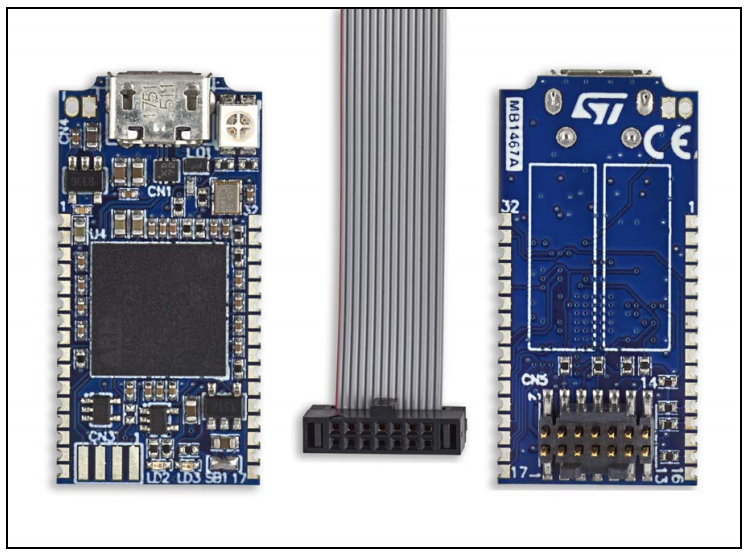

STLINK-V3MINI

사이즈 : 15x 30mm



• Stand-alone probe
• Approximately 15 x 30 mm high-density integration PCB
• Delivered with 1.27 mm pitch STDC14 debug connector and STDC14 to STDC14 flat cable
• Self-powered through a USB connector (Micro-B)
• USB 2.0 high-speed compatible interface
• Direct firmware update support (DFU)

• JTAG / serial wire debugging (SWD) specific features:
  • 3 V to 3.6 V application voltage support and 5 V tolerant inputs
  • JTAG communication support
  • SWD and serial wire viewer (SWV) communication support
• Virtual COM port (VCP) specific features:
  • 3 V to 3.6 V application voltage support on the UART interface and 5 V tolerant inputs
  • VCP frequency up to 15 MHz
• Drag-and-drop Flash programming
• Two color LEDs: communication, power
• Includes STDC14 signals protection



매뉴얼 : pdf





제조사 제품페이지 : www.st.com/en/development-tools/stlink-v3mini.html

STLINK-V3MINI - STMicroelectronics







연관



ST-LINK V2.-STM32, STM8 Debugging and Programming Tool.









---
