STLINK-V3MINI. STM32 디버거. 프로그래머.

by i.got.it 2021. 3. 7.

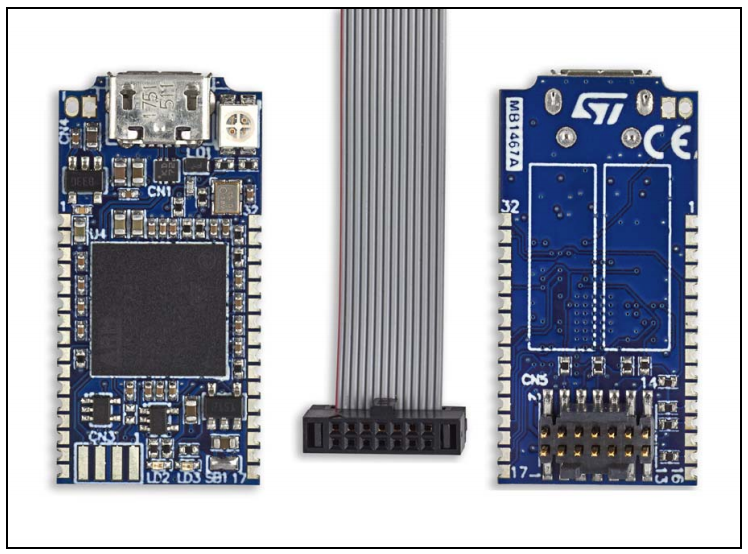

STLINK-V3MINI

사이즈 : 15x 30mm



  • Stand-alone probe
  • Approximately 15 x 30 mm high-density integration PCB
  • Delivered with 1.27 mm pitch STDC14 debug connector and STDC14 to STDC14 flat cable
  • Self-powered through a USB connector (Micro-B)
  • USB 2.0 high-speed compatible interface
  • Direct firmware update support (DFU)
  • JTAG / serial wire debugging (SWD) specific features:
    • 3 V to 3.6 V application voltage support and 5 V tolerant inputs
    • JTAG communication support
    • SWD and serial wire viewer (SWV) communication support
  • Virtual COM port (VCP) specific features:
    • 3 V to 3.6 V application voltage support on the UART interface and 5 V tolerant inputs
    • VCP frequency up to 15 MHz
  • Drag-and-drop Flash programming
  • Two color LEDs: communication, power
  • Includes STDC14 signals protection



매뉴얼 : pdf





제조사 제품페이지 : www.st.com/en/development-tools/stlink-v3mini.html



STLINK-V3MINI - STMicroelectronics

STLINK-V3MINI - STLINK-V3 compact in-circuit debugger and programmer for STM32, STLINK-V3MINI, STMicroelectronics

www.st.com
