P-NUCLEO-WB55
칩 STM32WB55 기반 개발보드.

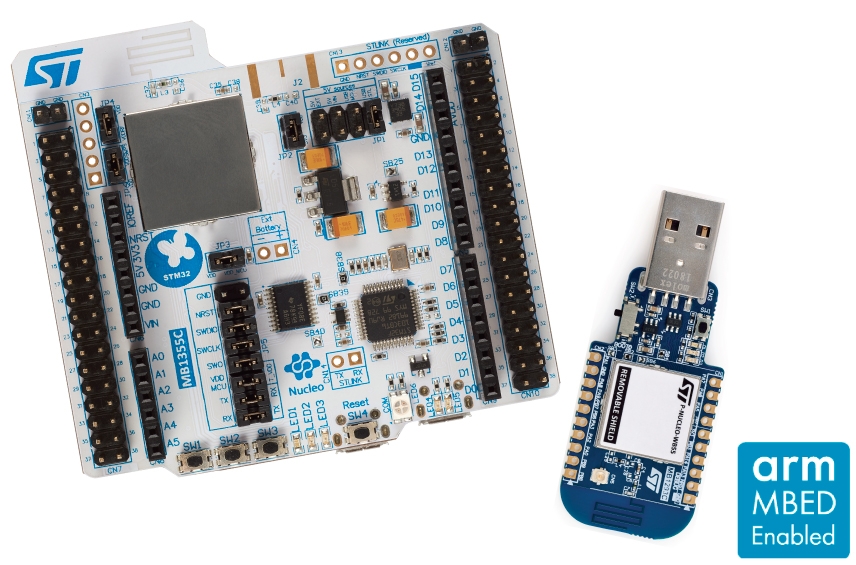

The P-NUCLEO-WB55 pack is a multi-protocol wireless and ultra-low-power device embedding a powerful and ultra-low-power radio compliant with the Bluetooth® Low Energy (BLE) SIG specification v5.0 and with IEEE 802.15.4-2011.
features
- Nucleo68
- STM32WB microcontroller ( STM32WB55RG ) in a VFQFPN68 package . 품번 :
- 2.4 GHz RF transceiver supporting Bluetooth® specification v5.0 and IEEE 802.15.4-2011 PHY and MAC
- Dedicated Arm® 32-bit Cortex® M0+ CPU for real-time Radio layer
- Three user LEDs
- Three user buttons and one reset button
- Board connector: USB user with Micro-B
- Board expansion connectors:
- Arduino™ Uno V3
- ST morpho
- Integrated PCB antenna or footprint for SMA connector
- Flexible power-supply options: ST-LINK USB VBUS or external sources
- On-board socket for CR2032 battery
- On-board ST-LINK/V2-1 debugger/programmer with USB re- enumeration capability: mass storage, virtual COM port and debug port
- Comprehensive free software libraries and examples available with the STM32Cube Expansion Package
- Support of a wide choice of Integrated Development Environments (IDEs), including IAR™, Keil®, GCC-based IDEs, Arm® Mbed™
- USB dongle
- STM32WB microcontroller ( STM32WB55CG ) in UFQFPN48 package.
- 2.4 GHz RF transceiver supporting Bluetooth® specification v5.0 and IEEE 802.15.4-2011 PHY and MAC
- Dedicated Arm® 32-bit Cortex® M0+ CPU for real-time Radio layer
- Switch for boot management
- User push button
- Three user LEDs
- Integrated PCB antenna or UFL connector
스펙 : dpf
메뉴얼 : pdf
제조사 제품페이지
nucleo 보드
동글
판매처
- 쿠팡 : 6만3천.
포장

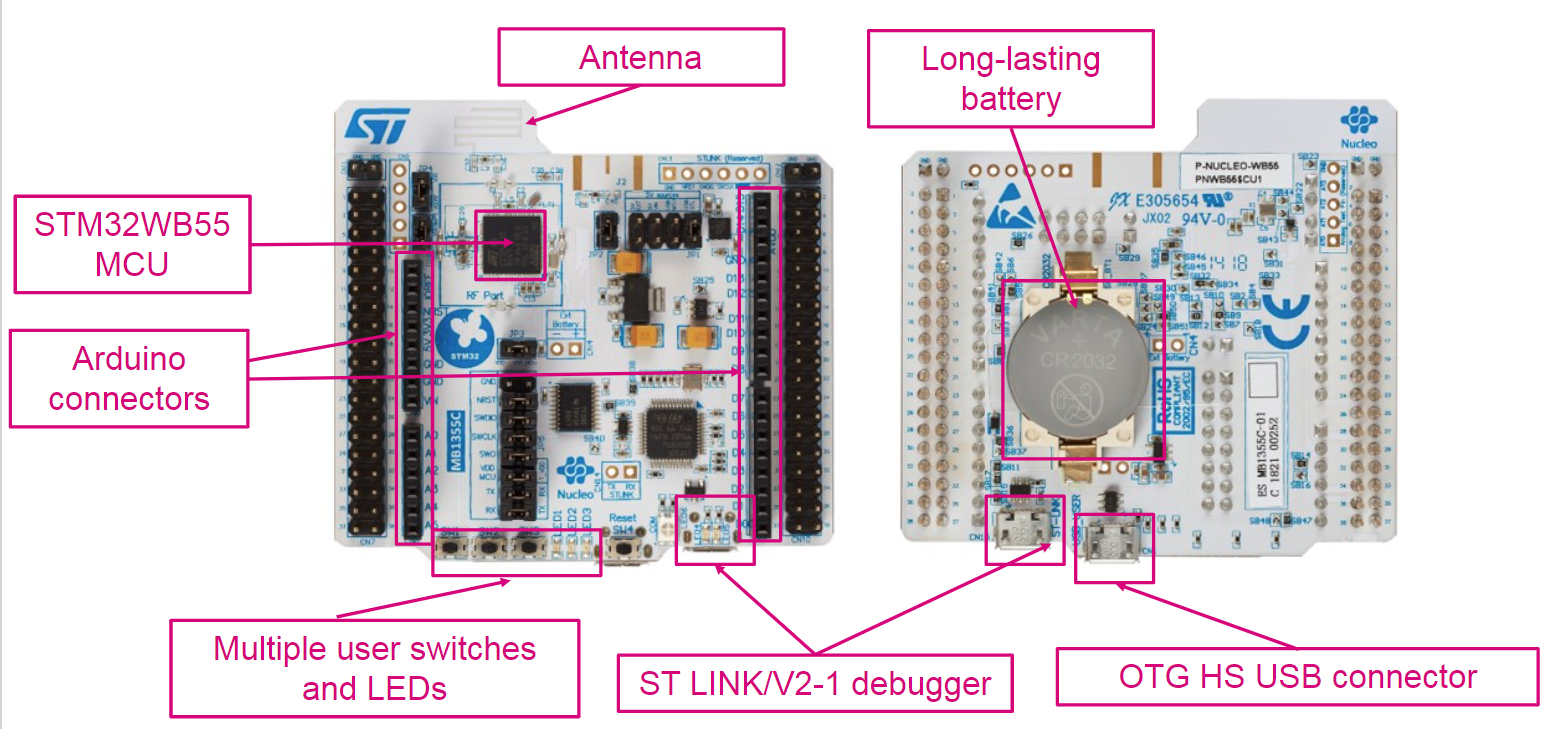

보드 앞뒤
동글 앞뒤
동글 USB 연결시 인식
- 동글에 있는 슬라이드 스위치를 BOOT 로 선택하여 연결한 경우. USB DFU 모드로 부팅된다.
- 동글에 있는 슬라이드 스위치를 BOOT 로 선택하지 않고 연결한 경우. USB CDC 구현해둔 기본 펌웨어 작동.
