P-NUCLEO-WB55. STM32WB55 기반

by 리치굿맨 2021. 3. 7.

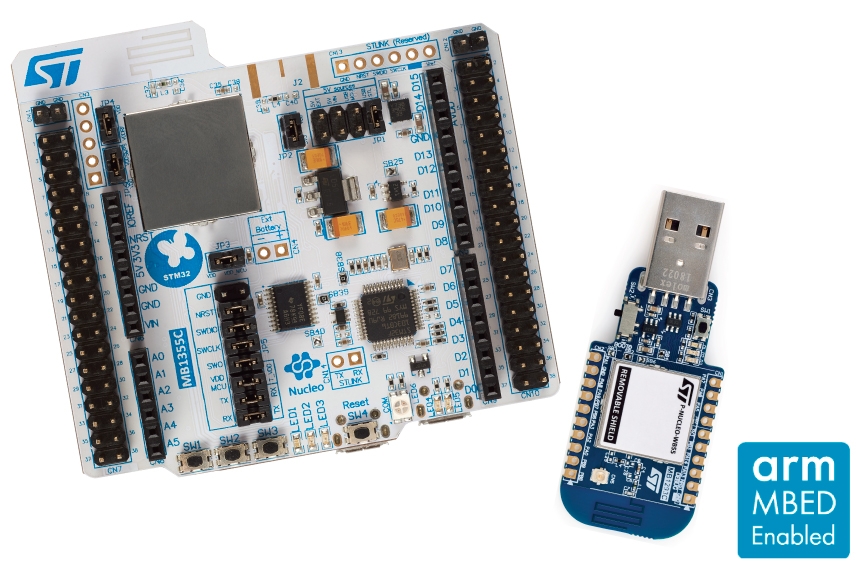

P-NUCLEO-WB55

칩 STM32WB55 기반 개발보드.

The P-NUCLEO-WB55 pack is a multi-protocol wireless and ultra-low-power device embedding a powerful and ultra-low-power radio compliant with the Bluetooth® Low Energy (BLE) SIG specification v5.0 and with IEEE 802.15.4-2011.









 features

  • Nucleo68
    • STM32WB microcontroller ( STM32WB55RG )  in a VFQFPN68 package .  품번 :
    • 2.4 GHz RF transceiver supporting Bluetooth® specification v5.0 and IEEE 802.15.4-2011 PHY and MAC
    • Dedicated Arm® 32-bit Cortex® M0+ CPU for real-time Radio layer
    • Three user LEDs
    • Three user buttons and one reset button
    • Board connector: USB user with Micro-B
    • Board expansion connectors:
      • Arduino™ Uno V3
      • ST morpho
    • Integrated PCB antenna or footprint for SMA connector
    • Flexible power-supply options: ST-LINK USB VBUS or external sources
    • On-board socket for CR2032 battery
    • On-board ST-LINK/V2-1 debugger/programmer with USB re- enumeration capability: mass storage, virtual COM port and debug port
    • Comprehensive free software libraries and examples available with the STM32Cube Expansion Package
    • Support of a wide choice of Integrated Development Environments (IDEs), including IAR™, Keil®, GCC-based IDEs, Arm® Mbed™
  • USB dongle
    • STM32WB microcontroller ( STM32WB55CG ) in UFQFPN48 package.
    • 2.4 GHz RF transceiver supporting Bluetooth® specification v5.0 and IEEE 802.15.4-2011 PHY and MAC
    • Dedicated Arm® 32-bit Cortex® M0+ CPU for real-time Radio layer
    • Switch for boot management
    • User push button
    • Three user LEDs
    • Integrated PCB antenna or UFL connector





스펙 : dpf



메뉴얼 : pdf



제조사 제품페이지



P-NUCLEO-WB55 - STMicroelectronics

P-NUCLEO-WB55 - Bluetooth 5 and 802.15.4 Nucleo Pack including USB dongle and Nucleo-64 with STM32WB55 MCUs, supports Arduino Uno V3 and ST morpho connectivity, P-NUCLEO-WB55, STMicroelectronics

www.st.com

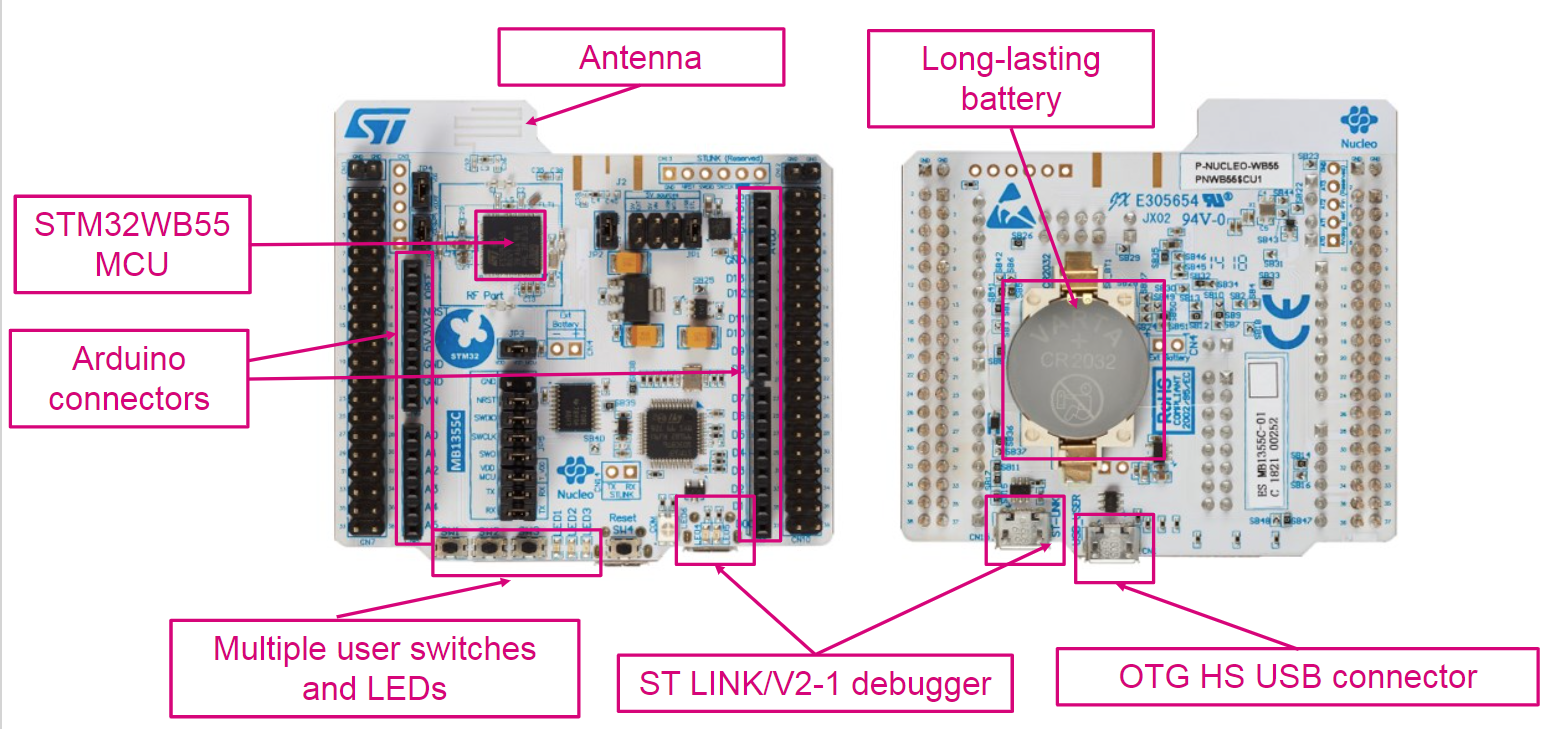

nucleo 보드

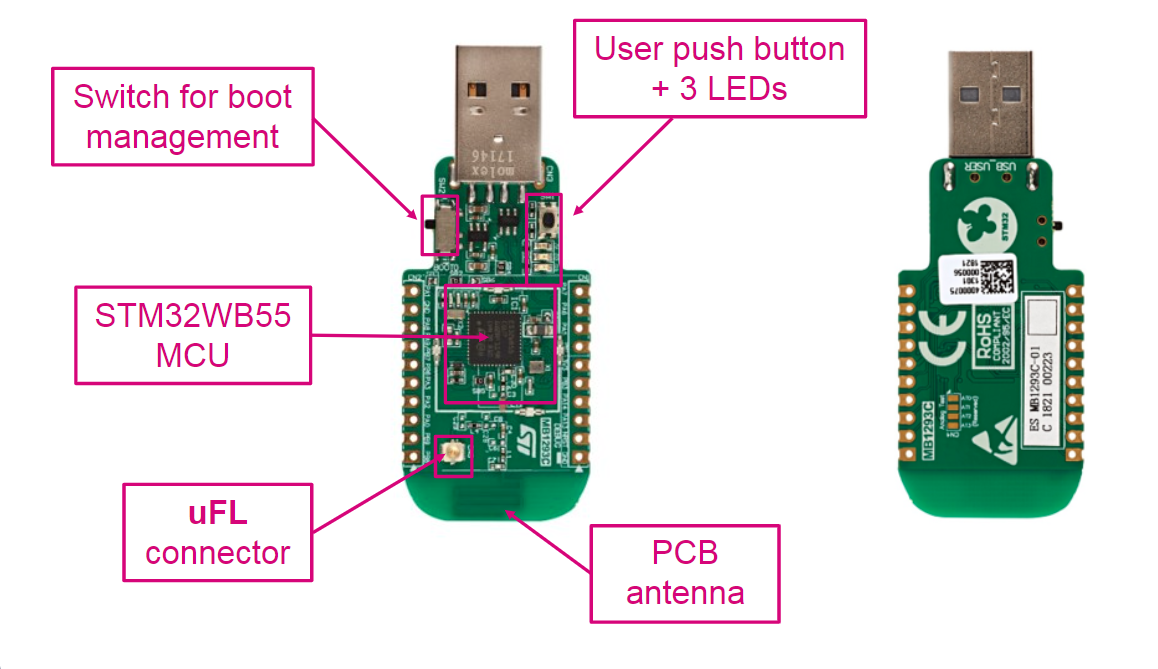

동글





판매처

- 쿠팡 : 6만3천.





[STMicroelectronics] P-NUCLEO-WB55

COUPANG

www.coupang.com

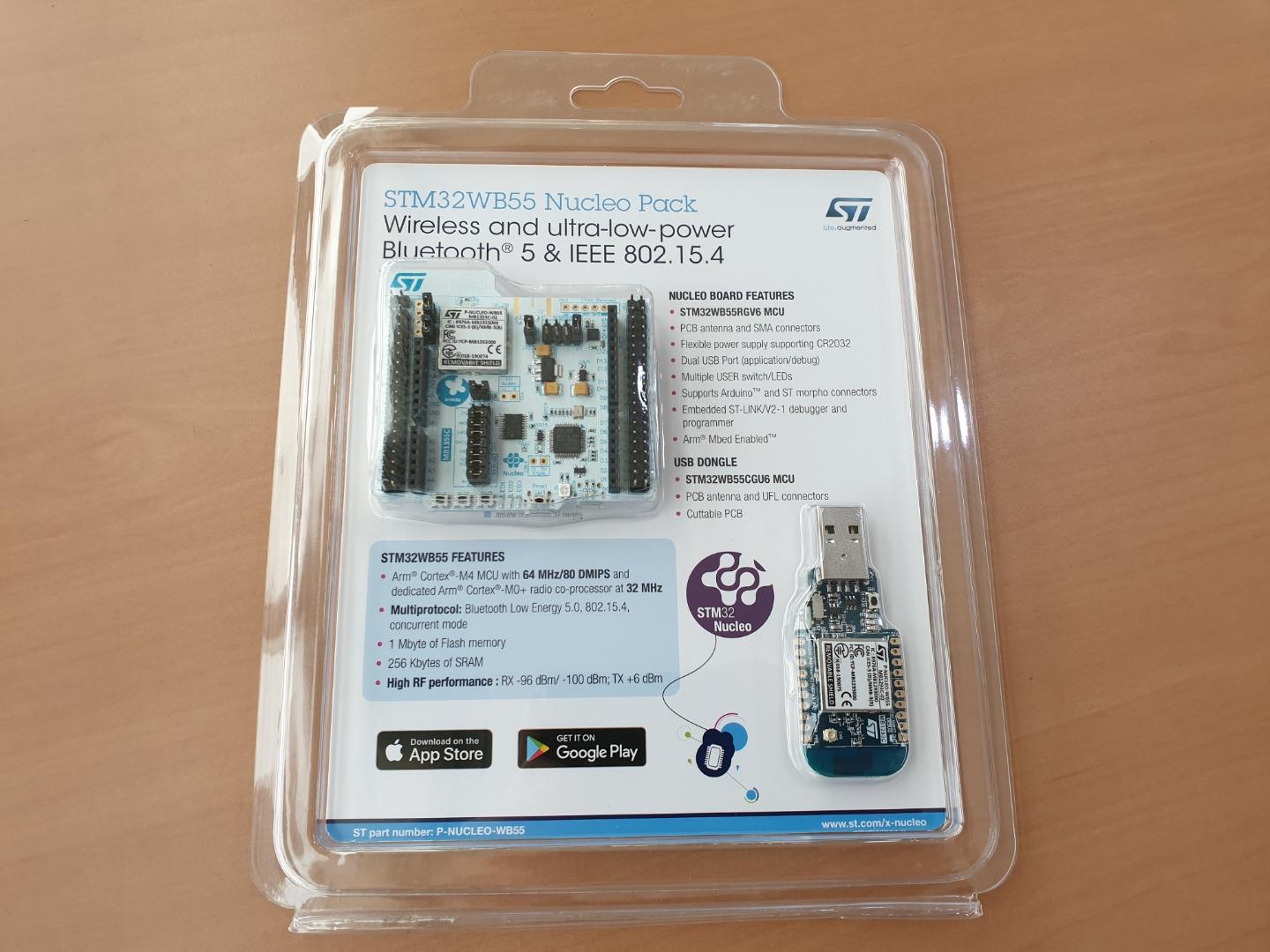

포장

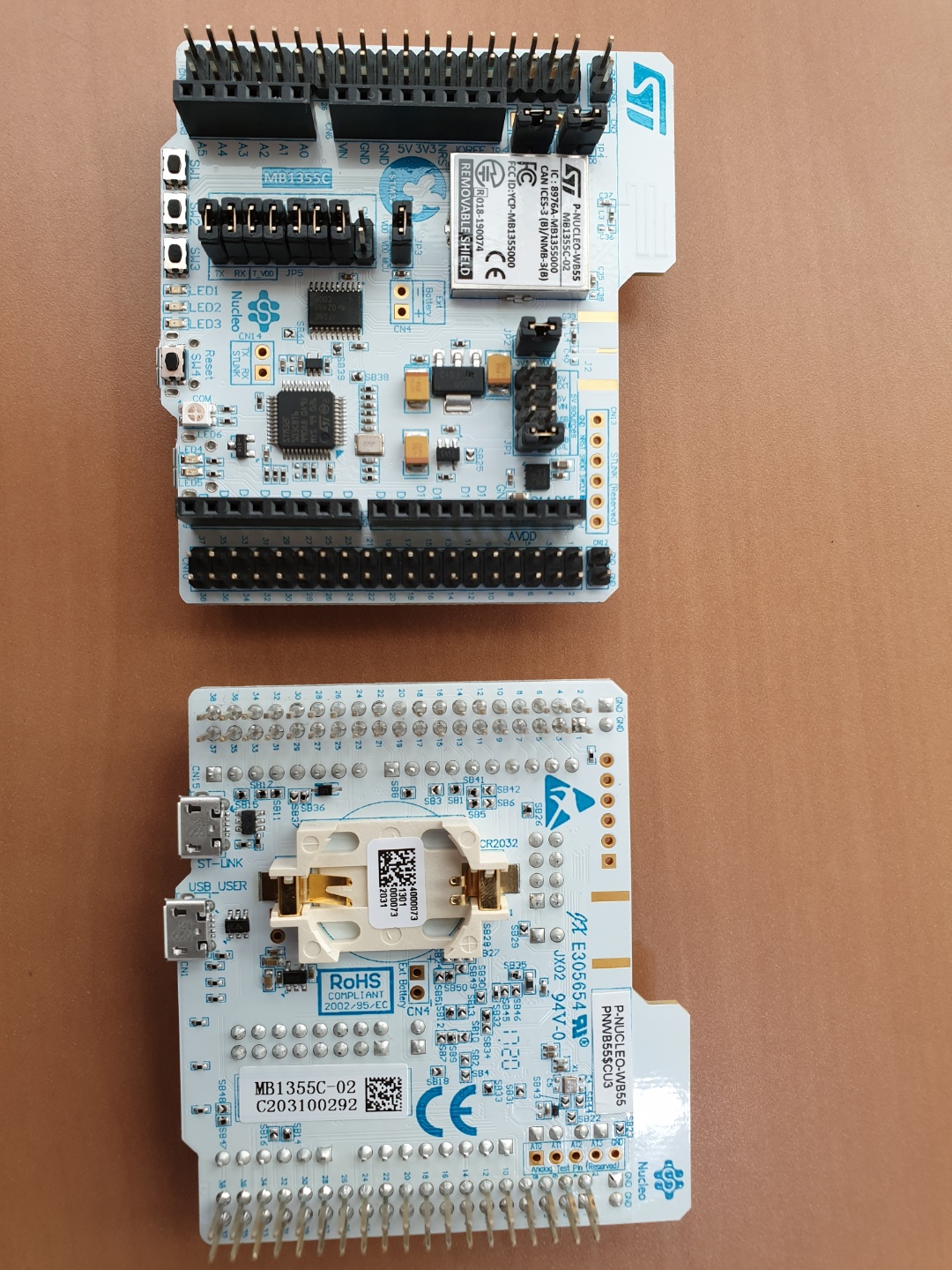

보드 앞뒤

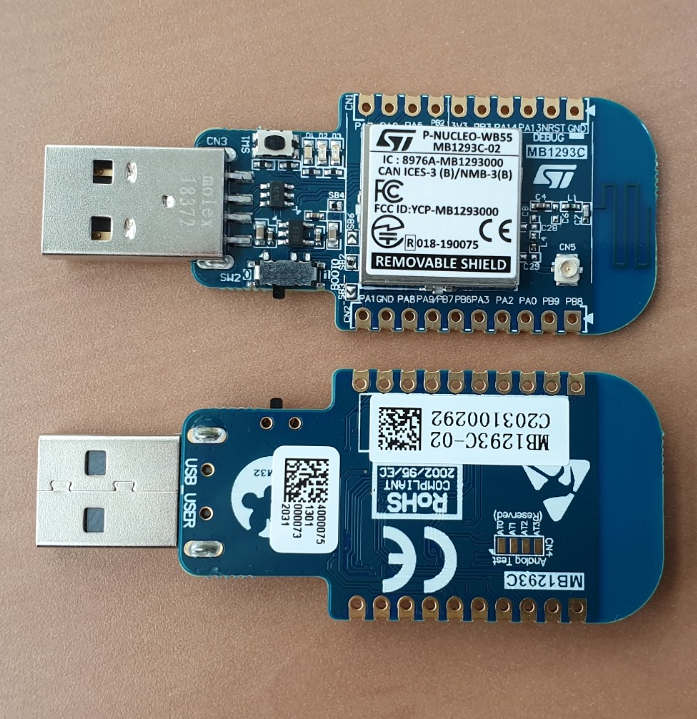

동글 앞뒤







동글 USB 연결시 인식

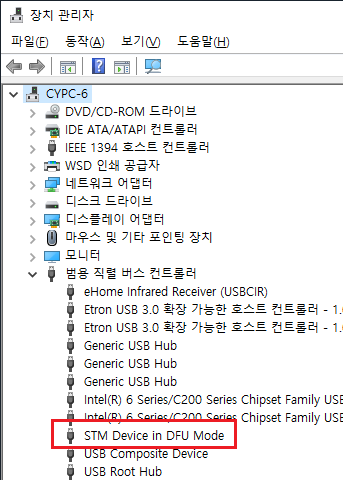

- 동글에 있는 슬라이드 스위치를 BOOT 로 선택하여 연결한 경우.  USB DFU 모드로 부팅된다.

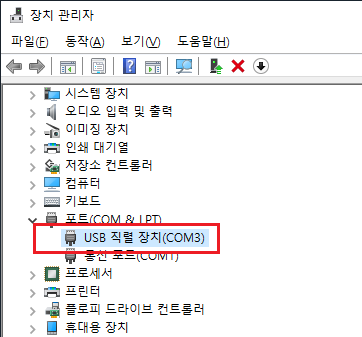

- 동글에 있는 슬라이드 스위치를 BOOT 로 선택하지 않고 연결한 경우.  USB CDC 구현해둔 기본 펌웨어 작동.
