ST-LINK V2 판매처
- 알리에서 구입가능. 지속 안정 판매중.
https://www.aliexpress.com/af/st%2525252dlink-v2.html?catId=0&initiative_id=SB_20230704195717&SearchText=st-link+v2&spm=a2g0o.productlist.1000002.0&aff_fcid=abafc1a5036c49e399d69c226afa5297-1688529605550-07352-_DlGaaOV&tt=CPS_NORMAL&aff_fsk=_DlGaaOV&aff_platform=portals-tool&sk=_DlGaaOV&aff_trace_key=abafc1a5036c49e399d69c226afa5297-1688529605550-07352-_DlGaaOV&terminal_id=250715cfa09945a4a476be45273bb9c9
Welcome to AliExpress! Sign Out Register Sign in My Orders My Coins Message Center Payment Wish List My Coupons
www.aliexpress.com
- 쿠팡에서는 이런 류의 기기 류 제품을 장기적으로 안정 판매되는 경우를 본적이 없음. 아마 아래 링크도 사라질 거임.
ARM용개발장비 ST - Link/V2
COUPANG
www.coupang.com
제조사 제공정보 : http://www.st.com/web/catalog/tools/FM146/CL1984/SC1046/SS1680/PF251168
사용자 설명서 : http://www.st.com/st-web-ui/static/active/en/resource/technical/document/user_manual/DM00026748.pdf
ST-LINK/V2 USB driver for Windows 7, Vista and XP -> http://www.st.com/web/en/catalog/tools/PF258167
ST-LINK/V2 내장 MCU 펌웨어 업데이트 방법. -> http://igotit.tistory.com/817
ST-LINK/V2 이용하여 타겟MCU 기록전용 유틸리 S/W -> http://igotit.tistory.com/901
The ST-LINK/V2 is an in-circuit debugger and programmer for the STM8 and STM32 microcontroller families. The single wire interface module (SWIM) and JTAG/serial wire debugging (SWD) interfaces are used to communicate with any STM8 or STM32 microcontroller located on an application board.
In addition to providing the same functionalities as the ST-LINK/V2, the ST-LINK/V2-ISOL features digital isolation between the PC and the target application board. It also withstands voltages of up to 2500 VRMS.
STM8 applications use the USB full speed interface to communicate with STMicroelectronic’s ST Visual Develop (STVD) or ST Visual Program (STVP) software.
STM32 applications use the USB full speed interface to communicate with Atollic, IAR, Keil or TASKING integrated development environments.
Key Features
- 5 V power supplied by a USB connector
- USB 2.0 full speed compatible interface
- USB standard A to mini B cable
- Direct firmware update feature supported (DFU)
- Status LED which blinks during communication with the PC
- Operating temperature 0 to 50 °C
SWIM specific features
- 1.65 V to 5.5 V application voltage supported on SWIM interface
- SWIM low-speed and high-speed modes supported
- SWIM programming speed rate: 9.7 Kbytes/s in low speed and 12.8 Kbytes/s in high speed
- SWIM cable for connection to the application via an ERNI standard vertical connector (ref: 284697 or 214017) or horizontal connector (ref: 214012)
- SWIM cable for connection to the application via a pin header or a 2.54 mm pitch connector

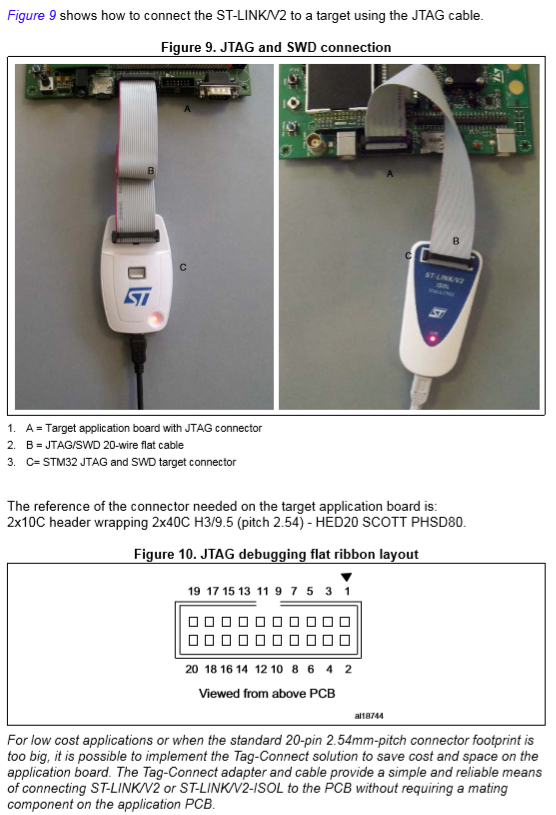

JTAG/serial wire debugging (SWD) specific features
- 1.65 V to 3.6 V application voltage supported on the JTAG/SWD interface and 5 V tolerant inputs
- JTAG cable for connection to a standard JTAG 20-pin pitch 2.54 mm connector
- JTAG supported
- SWD and serial wire viewer (SWV) communication supported
![](https://blog.kakaocdn.net/dn/saQrJ/btqx8Tacozk/CsmFYyWkpgPtsgLAUkQ6Y1/img.png)

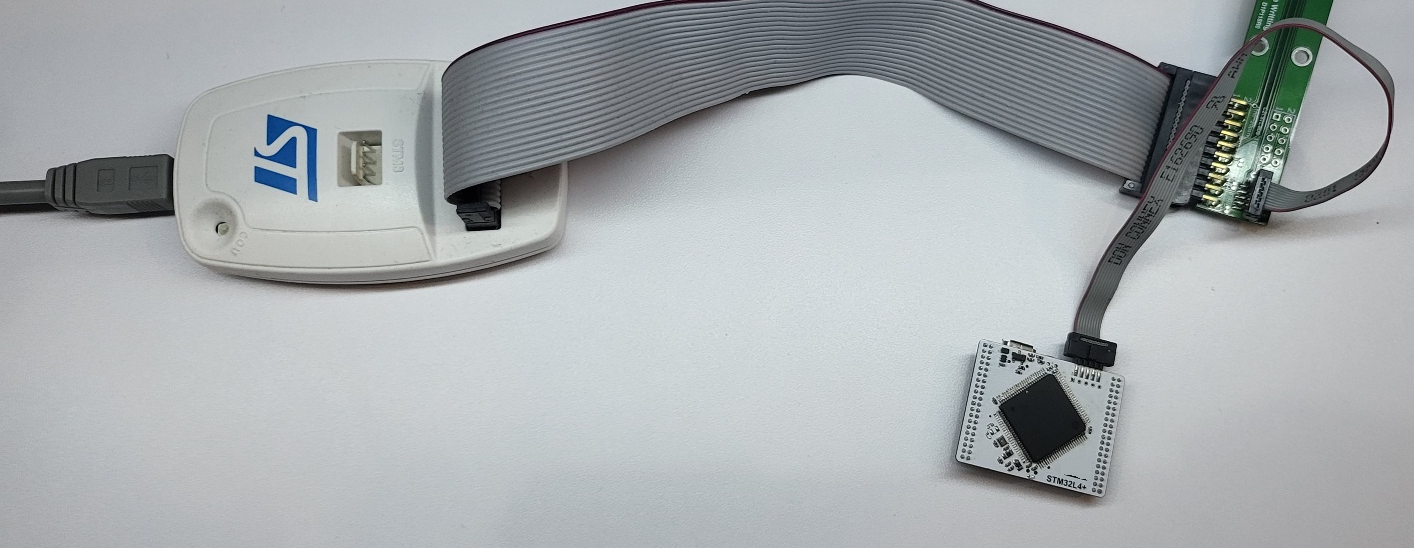

ST-LINK V2 의 보드 연결 커넥터 너무 크다. 소형 보드에 연결하는 경우에는 아래 예처럼 변환 보드 만들어서 활용하는게 좋음.
