TS3USBCA4. USB Type C SBU Multiplexer



TS3USBCA4

- USB Type C SBU Multiplexer



TS3USBCA4









Features

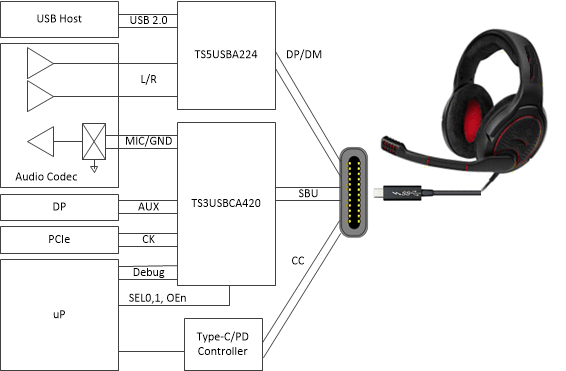

• USB Type-C™ 4:1 (TS3USBCA420) and 3:1 (TS3USBCA410) multiplexer (MUX) for analog audio MIC/AGND, DisplayPort AUX, and other signals
• General purpose MUX for 0 to 3.6 V differential or single-ended signals
• Ultra low RON of 60 mΩ for the AGND connections for low crosstalk performance
• Low Total Harmonic Distortion (THD)
• High bandwidth channels up to 500 MHz
• Supports both pin and I2C configuration
• Supports operation from either 3.3-V ±10% regulated supply, or 2.4 to 5.5 V battery
• Industrial temperature range: –40ºC to 85ºC TS3USBCA420I and TS3USBCA410I
• Commercial temperature range: 0ºC to 70ºC TS3USBCA420 and TS3USBCA410
• 1.8 mm x 2.6 mm, 16-pin, 0.4 mm pitch QFN package





데이터 시트 : http://www.ti.com/lit/gpn/ts3usbca4













연관

USB Type C : https://igotit.tistory.com/2275

USB 타입 C 커넥터.











---

첫 등록 : 2019년 11월 13일

최종 수정 :

단축 주소 : https://igotit.tistory.com/2379



---
