STM32CubeIDE

- 이클립스기반  STM32  C/C++  개발 플랫폼. STM32 칩 제조사가 직접 관리, 배포 주체.

- 무료.



features


Integration of services from STM32CubeMX:
STM32 microcontroller, microprocessor, development platform and example project selection
Pinout, clock, peripheral, and middleware configuration
Project creation and generation of the initialization code
Software and middleware completed with enhanced STM32Cube Expansion Packages
Based on Eclipse®/CDT, with support for Eclipse® add-ons, GNU C/C++ for Arm® toolchain and GDB debugger
STM32MP1 Series:
Support for OpenSTLinux projects: Linux®, U-Boot, TF-A and OP-TEE, including the Device Tree from STM32CubeMX
Support for Linux® User Space application, shared or static library
Additional advanced debug features including:
CPU core, peripheral register, and memory views
Live variable watch view
System analysis and real-time tracing (SWV)
CPU fault analysis tool
RTOS-aware debug suport including Azure® RTOS ThreadX and FreeRTOS™ Kernel
Support for ST-LINK (STMicroelectronics) and J-Link (SEGGER) debug probes
Import project from Atollic® TrueSTUDIO® and AC6 System Workbench for STM32 (SW4STM32)
Multi-OS support: Windows®, Linux®, and macOS®, 64-bit versions only



STM32CubeIDE  다운로드, 설치



설치파일 다운로드 링크.



STM32CubeIDE - STMicroelectronics

STM32CubeIDE - Integrated Development Environment for STM32, STM32CubeIDE-RPM, STM32CubeIDE-Lnx, STM32CubeIDE-Win, STM32CubeIDE-DEB, STM32CubeIDE-Mac, STMicroelectronics

www.st.com

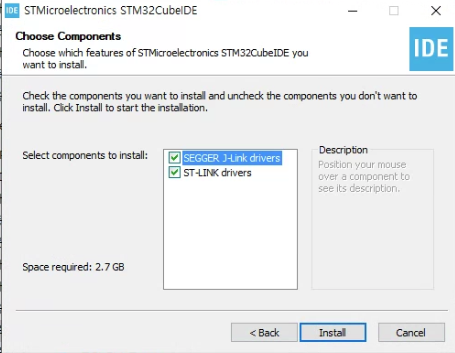

설치과정 중 보이는 디버거 드라이버 설치



- STM32 개발시 사용되는 디버거는  ST-LINK V2 로 충분 하나 J-Link 드라이버도 같이 설치했음.

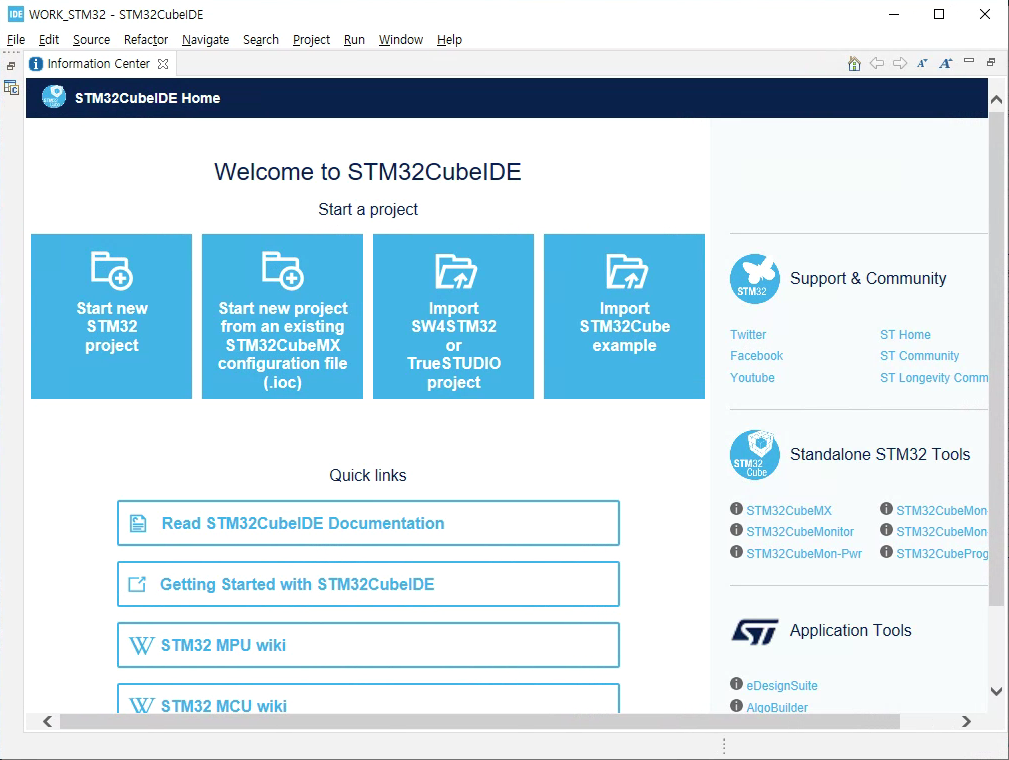

STM32CubeIDE 실행 첫화면

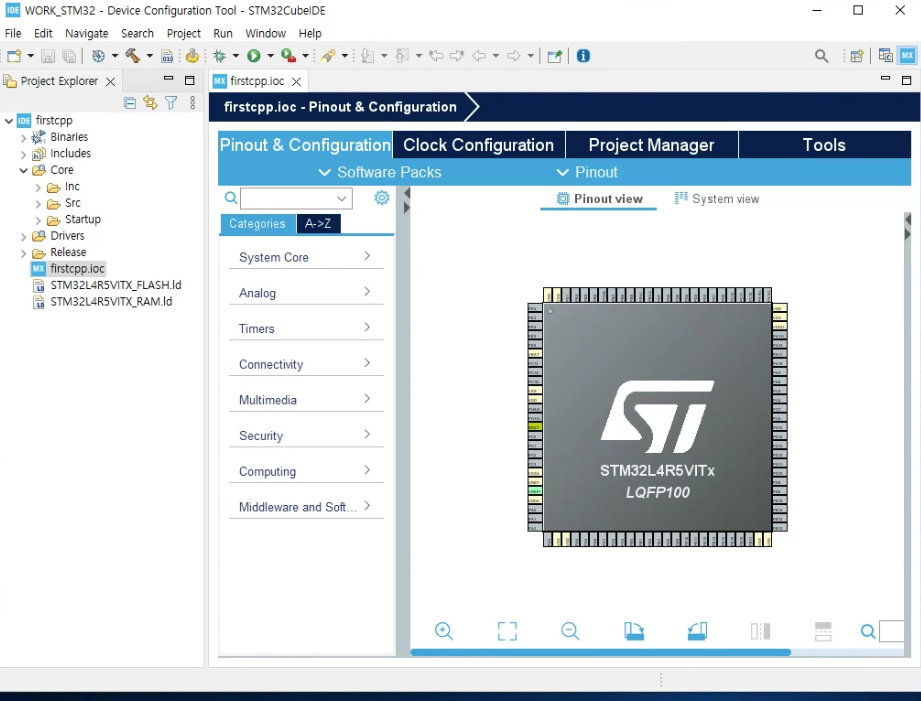

STM32CubeIDE 내에서 STM32CubeMX 실행됨

- 사용자가 별도로 STM32CubeMX 설치하지 않아도 CubeIDE 에서 자동으로 CubeMX 설치하고 IDE 내에서 CubeMX 실행됨.







제조사 제공 STM32CubeIDE 사용법 핵심 정리 영상

- 프로젝트 생성방법, IDE 내에서 STM32CubeMX 수정 하고 코드 생성 하는법, 디버깅 하는 법. 디버깅 모드에서 파형 플로팅 하는법.  이 영상 하나면 전체 사용방법 골격은 모두  파악된다.









STM32CubeIDE 활용 상세





효율적인 작업 폴더 구성예.



STM32CubeIDE . 지속 가능한 가치 누적 작업 폴더 구성

개요 . 지속 가능한 가치 누적 작업 폴더 구성 코딩 뿐만이 아니라 거의 모든 생성류의 프로젝트 결과물들은 내가 작업하여 생성한 여러가지 것들의 결합으로 만들어진다. 여러 프로젝트들을 진

igotit.tistory.com



프로젝트 생성 방법



STM32CubeIDE . 프로젝트 생성 방법

STM32CubeIDE 에서 프로젝트 생성 방법 사전 준비 1. PC 에 STM32CubeIDE 설치된 상태 2. ST LINK V2 를 PC 에 연결하고 하기 타겟보드에 연결. 3. 타겟칩 . (본 예에서는 STM32L4R5VI 사용. 타켓칩 품번이 무엇이든

igotit.tistory.com



다른 프로젝트 복사하여 다른 이름 새프로젝트 만들기



STM32CubeIDE . 프로젝트 복사하여 다른 이름 새 프로젝트 만들기.

참고 : 본 포스팅의 다른 프로젝트 복사 하여 새 프로젝트 만드는 방법은 STM32CubeIDE 외에도 이클립스 기반한 다른 IDE (예 : Simplicity Studio ) 들에서도 동일하게 적용됨. STM32CubeIDE . 프로젝트 복사하

igotit.tistory.com





Dubug  오류 해결



STM32CubeIDE . 오류 해결 . Debug . No source available for "main() at 0x8000262"

오류 증상 STM32CubeIDE 에서 프로젝트 메뉴 : Run - Debug 클릭하면 아래 화면 처럼 보이고 디버깅 불가 상태 해결책 메뉴 : Run - Debug Configurations... 클릭하여 뜬 창(아래 그림)에서 버튼 Searach Project... 클

igotit.tistory.com







STM32CUbeIDE  에서  C++ 클래스 활용하기



STM32CubeIDE . 임베디드 코드에서 C++ 클래스 활용

STM32 펌웨어 C++ 로 개발하기 STM32CubeIDE 에서 프로젝트에 적용할 컴파일러를 C 나 C++ 로 선택 가능하다. C++ 컴파일러로 선택하면 C++, C 컴파일도 같이 이뤄지는 것이고 C 컴파일러로 선택되어있다면

igotit.tistory.com



STM32CubeIDE 에서 FPU 설정부



STM32CubeIDE . FPU 설정부

STM32CubeIDE 에서 FPU 설정부 프로젝트 Properties 에서 아래 경로에 있는 Floating-point unit 에 FPv.. 가 선택하면 FPU 사용 활성화. None 선택하면 FPU 사용하지 않는것. 기본설정은 FPU 선택으로 되어있음. 연

igotit.tistory.com









상위



STM32. nRF52. ESP32. EFM8. EFM32. PSoC 활용 정리.

STM32. nRF52. ESP32. EFM8. EFM32. PSoC 총정리 제조사  칩  주요특징  실리콘랩 8bit MCU EFM8 시리즈 32bit  EFM32 시리즈  EFM8 싸다.  STM STM32 .  최고 항상 만족.  Cypress pSoC  pSoC6 은 기대..

igotit.tistory.com






첫 등록 : 2021.03.07

최종 수정 : 2023.07.16
