SSD1683 . dot matrix controller for e-Paper Display





SSD1683

- 전자종이디스플레이(EPD) 컨트롤러

- On chip display RAM

 - - Mono B/W: 400x300 bits

 - - Mono Red: 400x300 bits

- Support display partial update

- MCU interface: 4-wire or 3-wire Serial peripheral interface (maximum SPI write speed 20MHz)





- 데이터시트 : https://v4.cecdn.yun300.cn/100001_1909185148/SSD1683.PDF

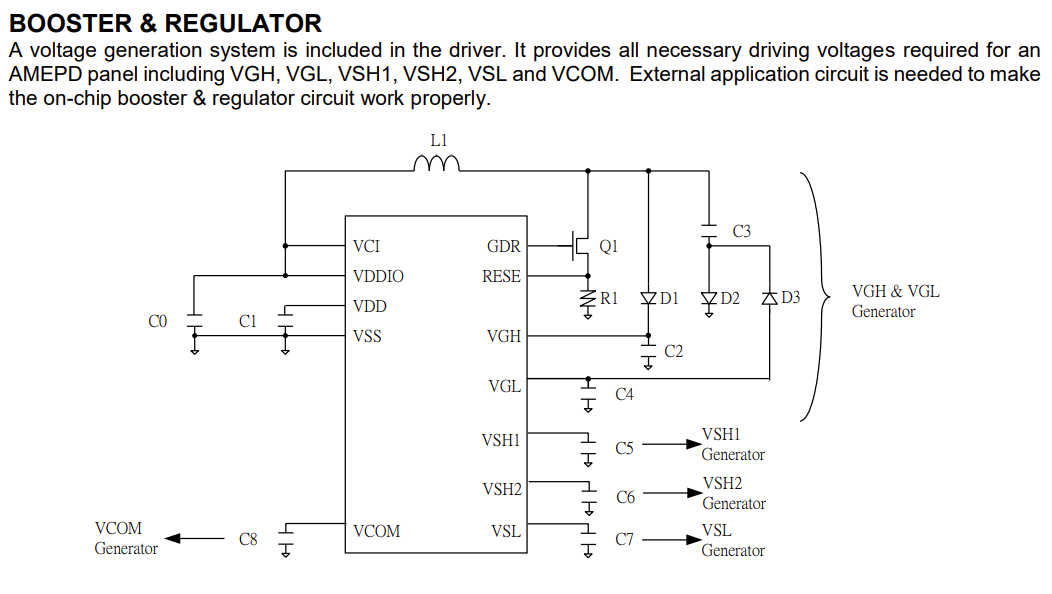

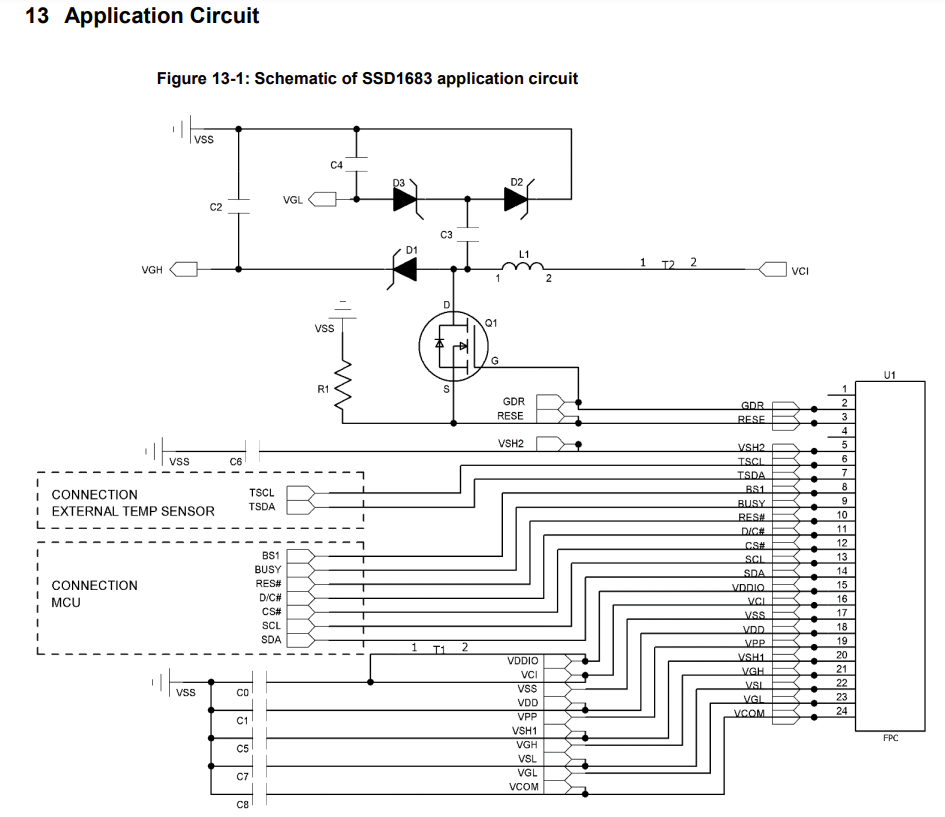

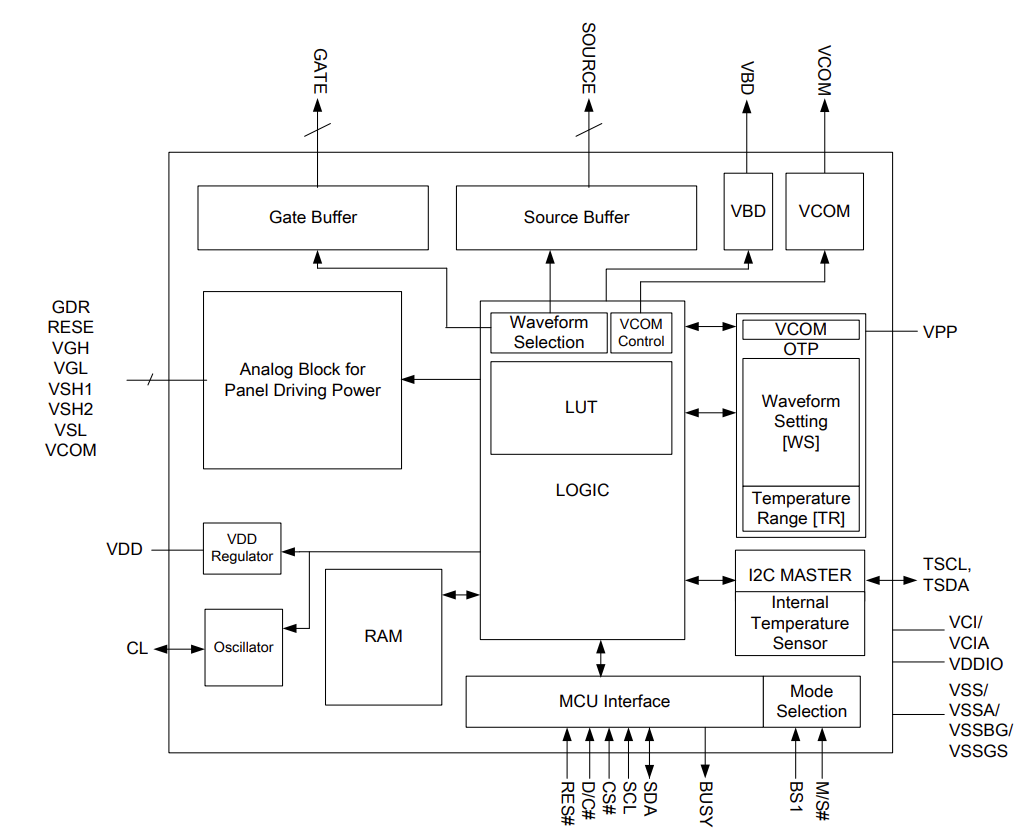

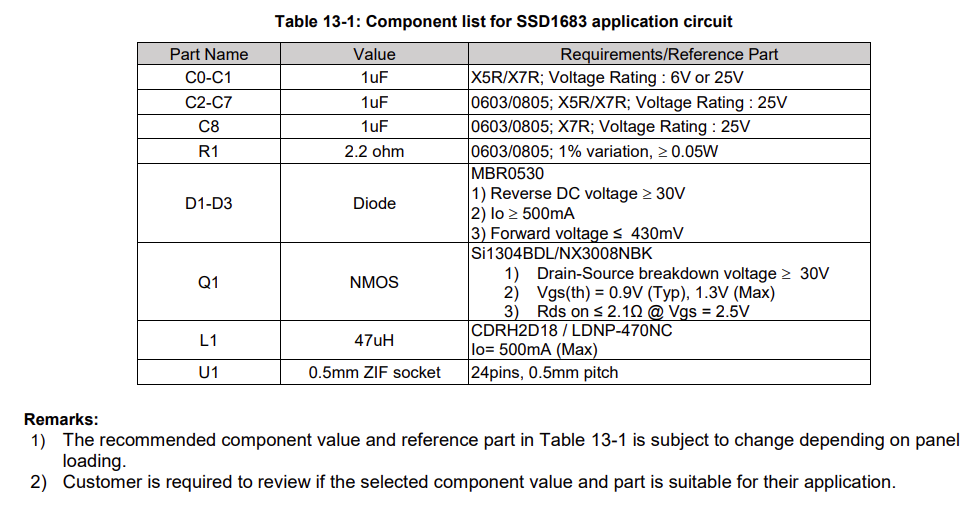

SSD1683  Function Block











VCI: 2.3 to 3.7V

VDD: 1.8V, regulate from VCI supply
